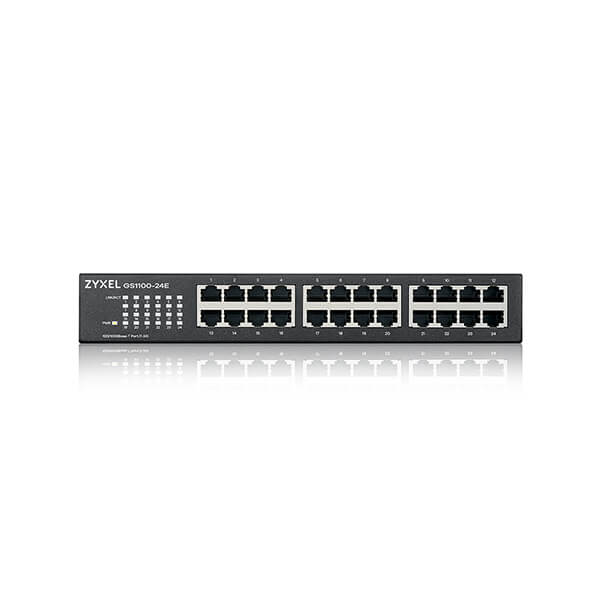

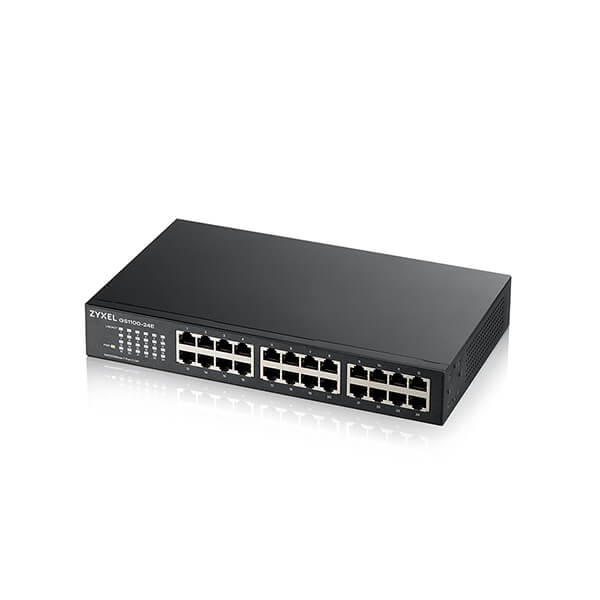

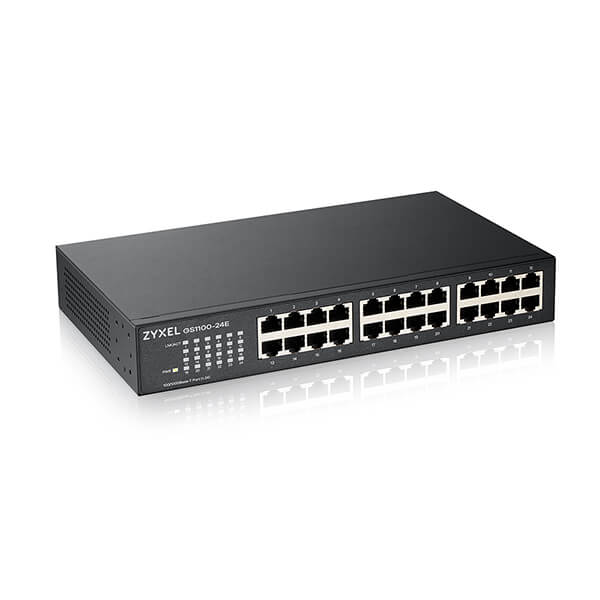

Zyxel GS1100-24E

GS1100 Series 8/16/24-port GbE Unmanaged Switch



The Zyxel GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.

Plug and play connectivity

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation

The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving

The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Support PoE+

The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.

Flexible choices for your office

The GS1100 Series switch offers multiple options including 8-port, 16-port, and 24-port for diversified office applications.



Specifications :

	GS1100-10HP	GS1100-16	GS1100-24E	GS1100-24
Description
Product name	8-port GbE Unmanaged PoE Switch with GbE Uplink	16-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch	24-port GbE Unmanaged Switch with GbE Uplink
Switch class	Unmanaged	Unmanaged	Unmanaged	Unmanaged
Port Density
Total port count	10	16	24	26
100/1000 Mbps	8	16	24	24
Gigabit SFP	2	–	–	2
PoE
802.3at PoE ports	8	–	–	–
Total PoE budget (watts)	130	–	–	–
Performance
Switching capacity (Gbps)	20	32	48	52
Forwarding rate (Mpps)	14.88	23.8	35.7	38.7
Packet buffer (byte)	256 K	525 K	525 K	525 K
MAC address table	8 K	8 K	8 K	8 K
Jumbo frame	9 K	9 K	10 K	10 K
Auto MDI/MDI-X	Yes	Yes	Yes	Yes
802.1p CoS	Yes	Yes	Yes	Yes
VLAN packet pass-through	Yes	Yes	Yes	Yes
Power
Input voltage	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz	100 – 240 V AC, 50/60 Hz
Power supply	External	Internal	Internal	Internal
Max. power consumption (watt)	156.1	10	13	14.5
Physical Specifications
Dimensions (WxDxH)(mm/in.)	250 x 104 x 27/9.84 x 4.10 x 1.06	215 x 133 x 42/8.46 x 5.24 x 1.65	267 x 162 x 42/10.51 x 6.38 x 1.65	441 x 131 x 44/17.36 x 5.16 x 1.73
Weight (kg/lb.)	0.73/1.6	0.9/1.98	1.5/3.3	1.8/3.96
Included accessories	Power adapter Power cord Wall-mount kit	Power cord Wall-mount kit Rack mounting kit*	Power cord Wall-mount kit Rack mounting kit*	Power cord Rack mounting kit*
Green Features
Fanless	Yes	Yes	Yes	Yes
Environmental Specifications
Operating Temperature	0°C to 50°C / 32°F to 122°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F	0°C to 40°C / 32°F to 104°F
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-40°C to 70°C/-40°F to 158°F
Storage Humidity	10% to 95% (non-condensing)
MTBF (hr)	1,000,070	1,156,942	366,919	388,378
Heat dissipation (BTU/hr)	89	32.86	43.53	51.25
