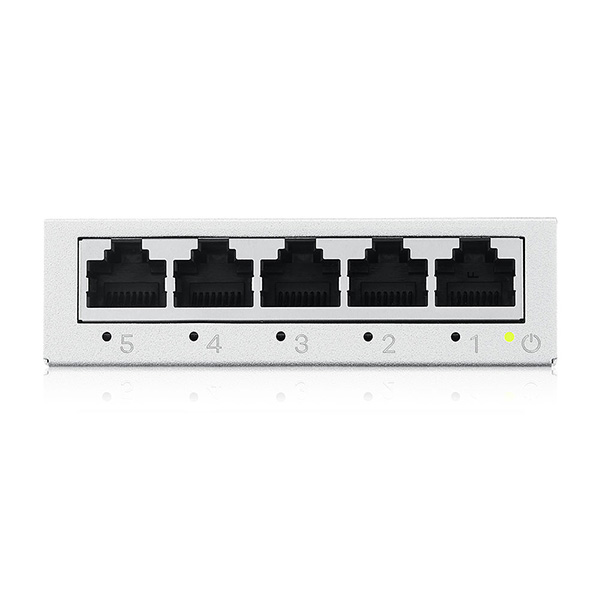

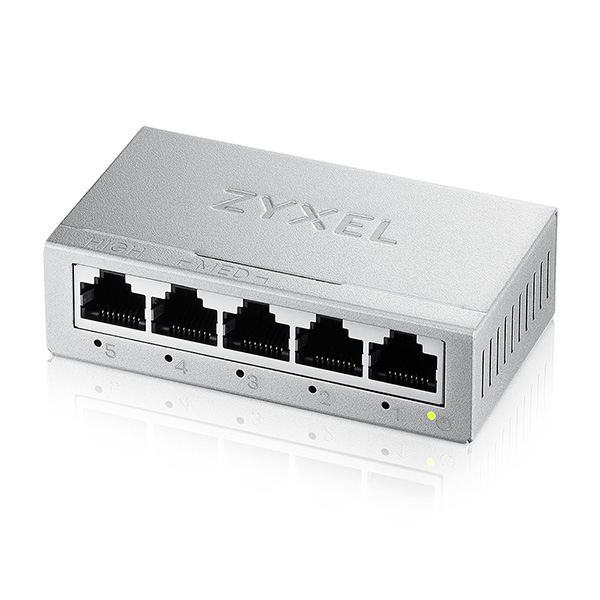

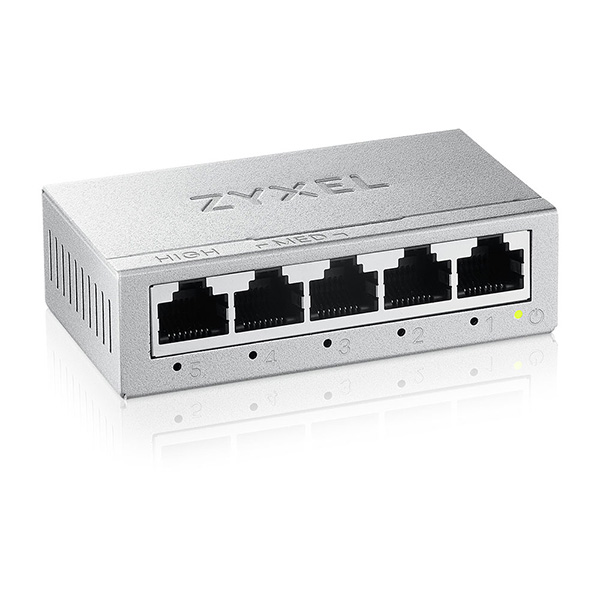

GS-105B v5/GS-108B v5

5/8-Port GbE Unmanaged Switch



The GS-105B v5 and GS-108B v5 are the most compact desktop switches newly introduced in Zyxel Switching portfolio. These two mini-sized 5-port and 8-port desktop unmanaged switches connect network devices for studio or small office network at Gigabit speed. The QoS ports guarantee high quality of video or voice data transmission.



Features :

• Surfing the network just plug and play
• QoS ports optimize performance of network applications
• Mini size fits desktop and wall-mounting installations
• Durable metal housing design
• Silent, and green switch for energy efficiency



Specifications :

Description

• Product name: 5-Port GbE Unmanaged Switch

Port Density

• Total port count: 5

• 100/1000 Mbps: 5

Performance

• Switching capacity (Gbps): 10

• Forwarding rate (Mpps): 7.4

• Packet buffer (byte): 128KB

• MAC address table: 2K

• Jumbo frame (byte): 9KB

Power

• Adapter AC input: 100 – 240V AC, 50/60Hz

• Adapter DC output: 5V 1A

• Power supply: External

• Max. power consumption (watts): 2.99

• Min. power consumption (watts): 0.44

• DC jack size (mm/in.): 5.5 x 2.1/0.22 x 0.08

Physical Specifications

• Dimensions (WxDxH)(mm/in.): 82.5 x 46.8 x 24/3.25 x 1.84 x 0.94

• Weight (kg/lb.): 0.11/0.24

Green Features

• Energy-Efficient Ethernet: Yes

Environmental Specifications

• Operating

  • Temperature: 0°C to 40°C/32°F to 104°F

  • Humidity: 10% to 90% (non-condensing)

• Storage

  • Temperature: -40°C to 70°C/-40°F to 158°F

  • Humidity: 5% to 95% (non-condensing)

• MTBF (hr): 259,047

• Heat dissipation (BTU/hr): 10.2

• Acoustic noise @ 25°C (min/max, dBA): Fanless, 0
