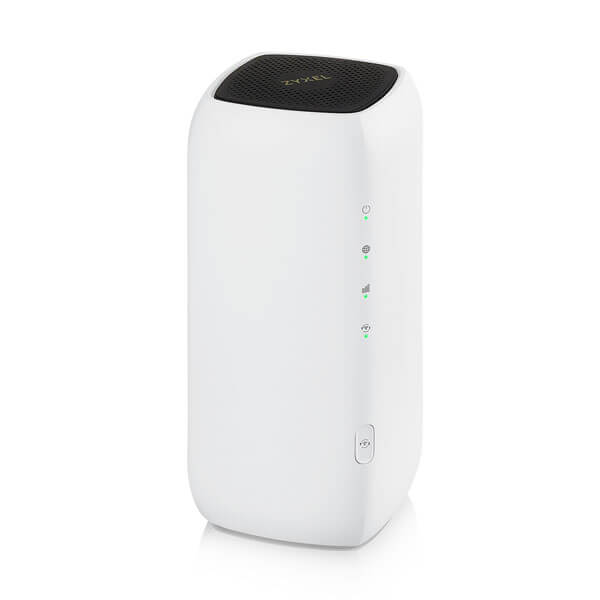

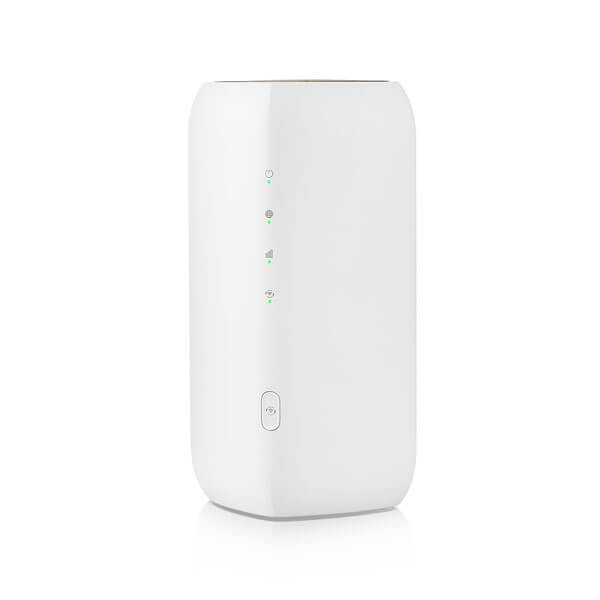

Zyxel FWA505

5G NR Indoor Router



Nebula FWA505: Your all-in-one 5G NR indoor router. Elevate your connectivity effortlessly with seamless network and cost-effective solutions. Achieve cost efficiency, effort, and time savings. Enjoy worry-free connectivity with professional support, empowering your network’s future success!



Features :

• 5G NR with up to 4.67 Gbps download rate
• AX1800 WiFi 6 speeds up to 1.77 Gbps
• 2.4/5GHz dual concurrent WiFi sharing with up to 64 devices
• Nebula cloud app for easy set up & management
• Full LAN Gigabit ports
• Connection failover between both WAN interfaces



Specifications :

System Specifications

IP Networking

• Supports IPv4/IPv6 dual stack (NDP IPv6)
• DHCP Client/server
• Virtual Private Network (VPN) pass-through
• Supports NAT/NAPT
• Supports DMZ
• Multiple APNs
• Supports port forwarding

Routing

• Supports bridge and router modes
• Supports remote management under bridge mode
• Static/dynamic route setting

IP Firewall

• DoS attack detection
• Supports SPI
• Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
• Filters LAN MAC address
• Filters LAN IP address

Management

• Supports local/remote device management and firmware upgrade via TR-069 and web GUI
• PIN/PUK management
• APN management
• Operating frequency band selection
• CLI/SSH (local and remote SSH access)
• Supports UPnP IGD
• Supports web server API to support APPs
• Supports Zyxel Nebula app (iOS and Android) for easy installation and local management

WLAN Feature

• Auto channel selection
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• WiFi-enabled devices: up to 64
• Security: none, WPA2-Personal, WPA/WPA2, WPA3
• MAC address filtering with 64 address supported
• Multiple SSIDs/hide SSIDs
• WLAN scheduling

Hardware Specifications

5G NR Interface

• 3GPP Release 15 standard-compliant
• Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports both NSA and SA modes
• FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
• TDD: n38/n40/n41
• Data rates:
  • 5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
  • 5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
• Output power:
  • Class 2 (26 dBm) for 5G NR n41/n77/n78
  • Class 3 (23 dBm) for rest FDD/TDD NR bands

4G LTE Interface

• 3GPP UE Category 19 standard-compliant
• Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43
• Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
• Supports frequencies:
  • LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
  • LTE-TDD: B38/B40/B41/B42/B43
• Peak data rates:
  • Max. DL 1.6 Gbps/UL 211 Mbps*
• Output power:
  • Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands

WiFi Air Interface

• Wireless standard: IEEE 802.11b/g/n/a/ac/ax
• Wireless speeds:
  • Link rates up to 1,774 Mbps* for 802.11ax DBDC
• Internal WiFi antenna:
  • Dual-band & concurrent 2×2 + 2×2
• WiFi antenna gain:
  • ≤ 4 dBi for 2.4 GHz
  • ≤ 5 dBi for 5 GHz

5G/4G Antennas

• Two TS9 connectors for external antennas**
• Four embedded omni-directional antennas
• Antenna Spec (Peak Gain)
  • 700 MHz ~ 960 MHz: 2 dBi
  • 1.4 GHz ~ 2.7 GHz: 5 dBi
  • 3.3 GHz ~ 4.2 GHz: 5 dBi

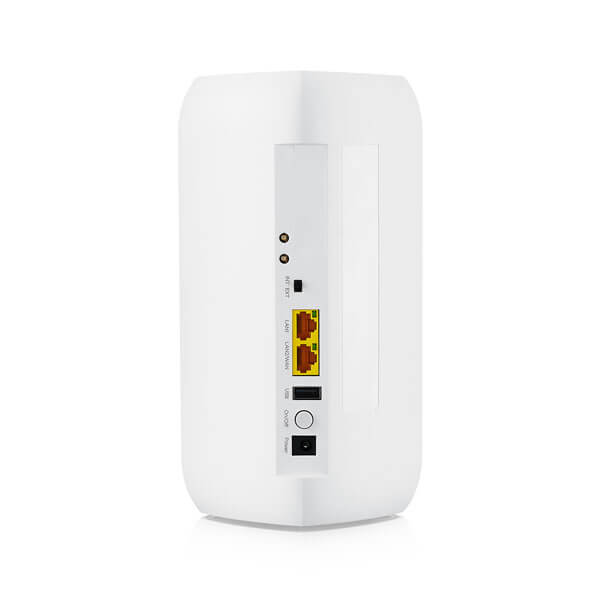

Hardware Interface

• Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
• Two external antenna connectors (TS9 type)
• One 3FF/Micro SIM card slot
• One power on/off button
• One WPS/WiFi on/off button
• One reset button
• One Int/Ext antenna switch
• One USB 2.0 host port for file sharing

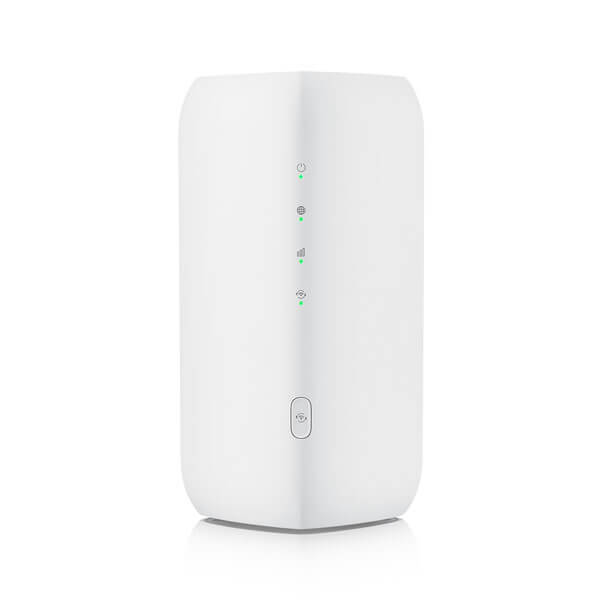

• LED indicators:
  • Power indication
  • Signal strength
  • Internet connection status
  • WiFi AP status
  • WPS status

Power Consumption

• 24 W (peak)

Physical Specifications

• Item
  • Dimensions (WxDxH): 103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)
  • Weight: 1145 g (2.53 lb.)
• Packing
  • Dimensions (WxDxH): 252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)
  • Weight: 2450 g (5.40 lb.)

Environmental Specifications

• Operating
  • Temperature: -10°C to 40°C (14°F to 104°F)
  • Humidity: 10% to 90% RH (non-condensing)
• Storage
  • Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: 0% to 95% (non-condensing)

Certifications

• CE
• NCC
• BSMI
• NBTC Certification

Package Contents

• Power adapter
• Ethernet cable 1.8 m 8P8C
