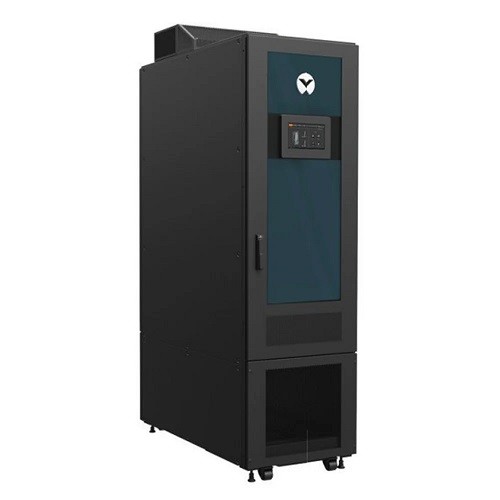

Vertiv™ SmartCabinet™ 2-E (01230979)

SmartCabinet™ 2-E, 600Wx1200D, Glass Door 6KVA UPS, 0.9-3.5KW Integrated Cooling, 24U space, Electronic Locks



Self-contained, pre-configured, pre-engineered and factory tested infrastructure solutions for data centers and telecom networks.



Benefits :

• Power Management Unit (PMU) -Built-in PMU provides power management and distribution to UPS, cooling unit and rack PDU. Comes with surge protection device.

• Rack Power Distribution Unit (rPDU)- Features branch level metering and remote on/off control of individual receptacles.

• Smart Lock- Provides secure door access via ID card, web interface and key.

• UPS & Internal Battery- online double conversion UPS with internal battery module ensures clean power feeding into IT equipment. Power factor: 1.0.

• Emergency Fan- Activates automatically in the event of overheating or cooling unit failure.

• Cooling Unit- Features cooling modulation, enables cooling on demand and quick adapt to load fluctuation due to focused area within the system.

• Centralized Management & Monitoring- Enables central management of all intelligent components within the rack.

• Environmental Sensor- Report critical environmental informationa and alarm notification. Ensure IT equipment is kept in desired condition.

• LCD Touchscreen Panel- User-friendly display enables easy access to power, cooling, environment and security information.



Features :

• Full containment (600mm width) with glass door design

• Supports up to 24U IT usable space(NEW)

• Double conversion UPS with internal battery module

• Supports up to 3kW IT system

• Switched rack PDU

• Self-contained cooling system(NEW)

• Cooling high availability(NEW)

• Features cooling modulation, 30-100%

• Features ECO Mode(NEW)

• 9” inch touch screen HMI display

• Centralized monitoring via RDU

• Tri-color LED lighting(NEW)

• Built-in sensor system to monitor the cabinet

• Smart lock system



Optional:

• Full containment design (600mm width) with steel door design

• Heat exhaust kit



Specifications :
