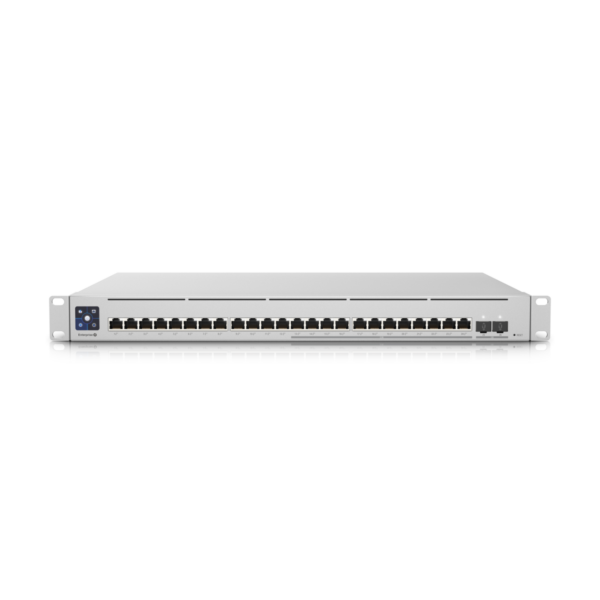

Ubiquiti USW-ENT-24-POE L3 PoE switch with (12) 2.5GbE, PoE+ RJ45 ports, (12) GbE, PoE+ RJ45 ports, and (2) 10G SFP+ ports

฿38,940.00 (รวมภาษี)

฿36,392.52 (ไม่รวมภาษี)

รหัสสินค้า: USW-ENT-24-POE

มีสินค้าอยู่ 100

Product successfully added to the Quote List

Ubiquiti USW-ENT-24-POE

Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports

Specifications :

Mechanical
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports (12) 2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	62 Gbps
Switching capacity	124 Gbps
Forwarding rate	92.25 Mpps
Power method	(1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply	AC/DC, internal, 550W
Supported voltage range	100—240V AC
Max. power consumption	550W
Total available PoE	400W
Max. PoE+ wattage per port by PSE	34.2W
Voltage range PoE mode	PoE: 44— 57V PoE+: 50—57V
Services	SMB Layer 3 PoE GbE switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3″ color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	Link/activity
SFP+	Link/activity
Application Requirements
UniFi Network	Version 5.14.12 and later
