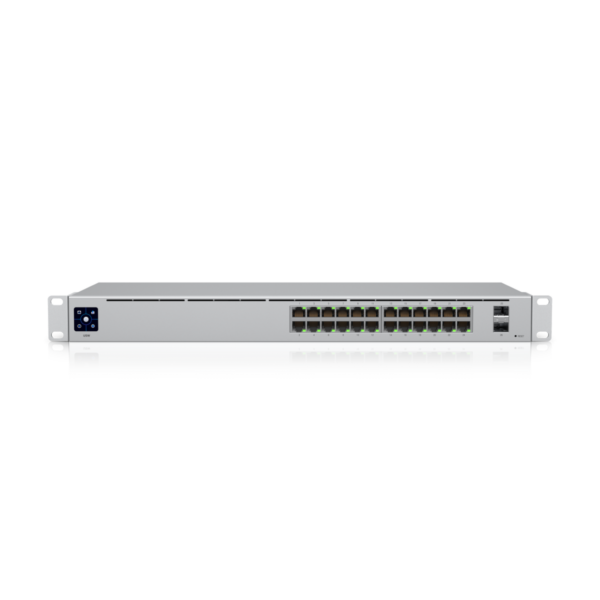

Ubiquiti USW-24

UniFi 24-Port Layer 2 Manage Switch with 2 SFP

Mechanical
Dimensions	442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)
Weight	Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(24) GbE RJ45 ports (2) 1G SFP ports
Total non-blocking throughput	26 Gbps
Switching capacity	52 Gbps
Forwarding rate	38.69 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 36W
Supported voltage range	100—240V AC
Max. power consumption	25W
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3″ touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 45° C (23 to 113° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	–
LEDs
System	Status
Ethernet	Speed/link/activity
SFP	Link/activity
Application Requirements
UniFi Network	Version 7.2.94 and later
