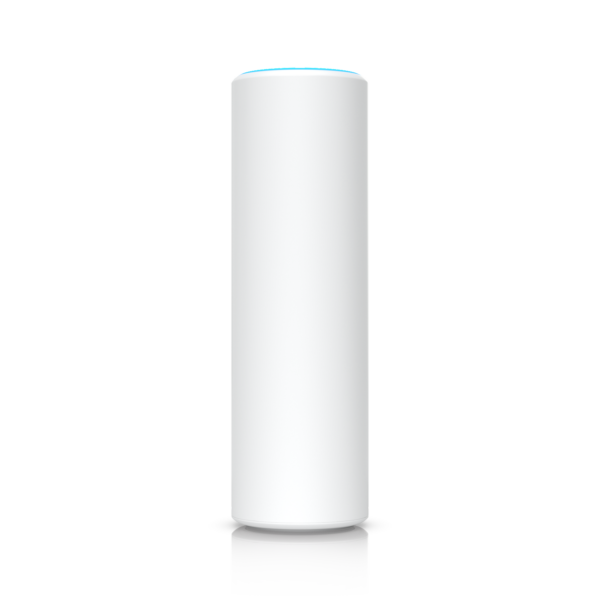

Ubiquiti U6-MESH Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications

Ubiquiti U6-MESH Indoor/outdoor, 4×4 WiFi 6 access point designed for mesh applications

฿9,340.00 (รวมภาษี)
฿8,728.97 (ไม่รวมภาษี)

รหัสสินค้า: U6-MESH

มีสินค้าอยู่ 100

Ubiquiti U6-MESH

Indoor/outdoor, 4×4 WiFi 6 access point designed for mesh applications



Specifications :

Mechanical

Dimensions

Ø48.5 x 159.5 mm (Ø1.9 x 6.3″)

Weight

400 g (14.1 oz)

Enclosure material

Polycarbonate, aluminum

Mount material

Polycarbonate

Weatherproofing

IPX5

Hardware

Networking interface

(1) GbE RJ45 port

Management interface

Ethernet

Bluetooth

Power method

PoE

Power supply

UniFi PoE switch

48V, 0.32A PoE adapter (Included)

Supported voltage range

44—57V DC

Max. power consumption

11.4W

Max. TX power

2.4 GHz

5 GHz

6 GHz

22 dBm

26 dBm

–

MIMO

2.4 GHz

5 GHz

6 GHz

2 x 2 (UL MU-MIMO)

4 x 4 (DL/UL MU-MIMO)

–

Throughput rate

2.4 GHz

5 GHz

6 GHz

573.5 Mbps

4.8 Gbps

–

Antenna gain

2.4 GHz

5 GHz

6 GHz

3 dBi

5 dBi

–

LEDs

White/blue

Button

Factory reset

Mounting

Wall, desktop, pole (Included)

Ceiling (Optional)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Zero wait DFS

Yes*

*Supported with upcoming firmware versions

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network

Version 6.2.51 and later



Datasheet
