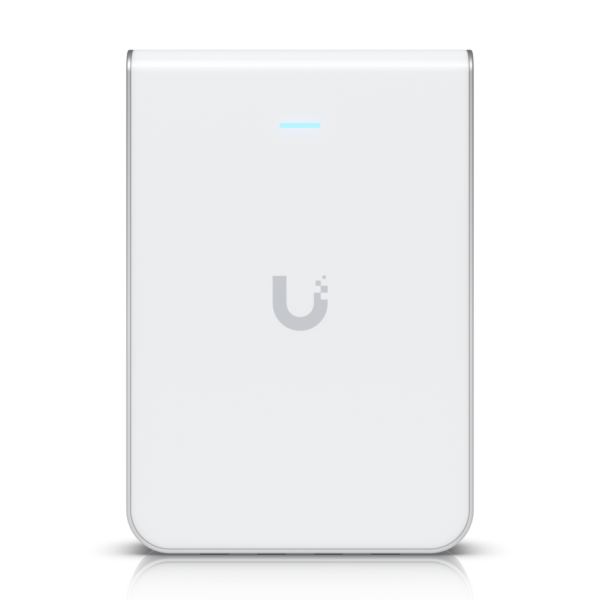

Ubiquiti U6-IW UniFi Inwall Wireless Access Point ( WiFi 6 )

Ubiquiti U6-IW UniFi Inwall Wireless Access Point ( WiFi 6 )

฿8,490.00 (รวมภาษี)
฿7,934.58 (ไม่รวมภาษี)

รหัสสินค้า: U6-IW

มีสินค้าอยู่ 100

Uniquiti U6-IW

UniFi Inwall Wireless Access Point ( WiFi 6 )



Specifications :

Mechanical

Dimensions

139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3″)

Weight

460 g (1 lb)

Enclosure material

Plastic, aluminum

Mount material

Aluminum

Hardware

Networking interface

(1) Data-in: GbE RJ45 port

(4) Data-out: GbE RJ45 ports

Management interface

Ethernet

Bluetooth

PoE interface

(1) PoE in (PoE output not used)

(1) PoE out (Requires a PoE+ switch)

Power method

PoE

PoE+ (Required for PoE output)

Power supply

UniFi PoE switch

48V, 0.5A PoE adapter (Optional)

Max. power consumption

13.5W (Excluding PoE output)

Max PoE wattage per port by PSE

15.4W*

*Requires a PoE+ switch

Voltage range PoE mode

44—57V DC

Max. TX power

2.4 GHz

5 GHz

6 GHz

22 dBm

26 dBm

–

MIMO

2.4 GHz

5 GHz

6 GHz

2 x 2 (UL MU-MIMO)

4 x 4 (DL/UL MU-MIMO)

–

Throughput rate

2.4 GHz

5 GHz

6 GHz

573.5 Mbps

4.8 Gbps

Antenna gain

2.4 GHz

5 GHz

6 GHz

5 dBi

5.9 dBi

–

LED

White/blue

Button

Factory reset

Mounting

Wall (Included)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Zero-wait DFS

Yes*

*Supported with upcoming firmware versions.

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network

Version 6.4.52 and later



Datasheet
