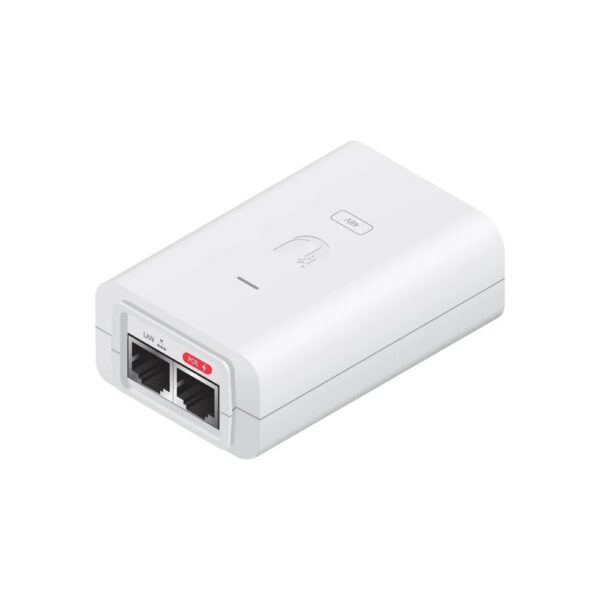

Ubiquiti POE-48-24W-WH

PoE Injector, 48VDC, 24W



Specifications :

Dimensions : 93 x 59 x 33 mm (3.66 x 2.32 x 1.30”)

Weight : 145 g (5.12 oz)

Output Voltage : 48VDC @ 0.5A

LAN Activity Indicator : No

Gigabit LAN Port : No

Remote Reset Capability : No

Reset Button : No

Rated Voltage : 100-240VAC @ 50/60Hz

Input Current : 0.6A @ 120VAC, 0.4A @ 240VAC

Inrush Current : <60A Peak @ 120VAC, <120A Peak @ 230VAC

Efficiency : 80+%

Output Ripple : 1% Max.

Switching Frequency : 65 kHz

Line Regulation : ≤ 3%

Load Regulation : ≤ 5%

2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering : –

Operating Temperature : 0 to 40° C (32 to 104° F)

Storage Temperature : -30 to 70°C (-22 to 158° F)

Operating Humidity : 5 to 90% Noncondensing

AC Connector : IEC-320 C6

Data IN / POE : RJ45 Shielded Socket

Surge Protection : Difference and Common Mode

Clamping Protection : 11V Data, 60V Power

Max. Surge Discharge : 1500A (8/20 µs) Power

Peak Pulse Current : 36A (10/1000 µs) Data

Shunt Capacitance : <5 pF data

Response Time : <1 ns

Certifications : CE, FCC, IC, UL
