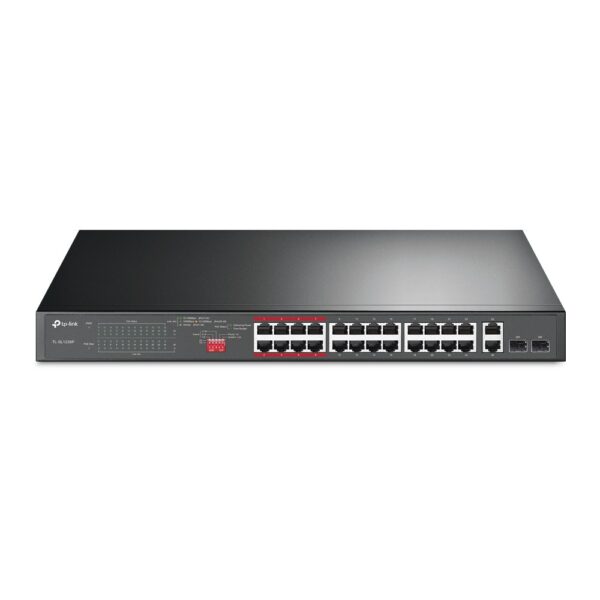

TP-Link TL-SL1226P 24Port 10/100M PoE+, 250W + 2 Gb Non-PoE

TP-Link TL-SL1226P 24Port 10/100M PoE+, 250W + 2 Gb Non-PoE

฿6,760.00 (รวมภาษี)
฿6,317.76 (ไม่รวมภาษี)

รหัสสินค้า: TL-SL1226P

มีสินค้าอยู่ 100

TP-Link TL-SL1226P

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch



Highights :

  • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports

  • Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance system

  • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor

  • Isolation Mode allows one-click client traffic separation for higher security and performance

  • Plug and play, with no configuration and installation needed



Specifications :

HARDWARE FEATURES
Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240 VAC, 50/60 Hz
Packet Forwarding Rate 6.54 Mpps
PoE Ports (RJ45)
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
Mac Address Table 8 K
Jumbo Frame 10 KB
Switching Capacity 8.8 Gbps
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max. Power Consumption 14.81 W (220/50 Hz. no PD connected)
302.88 W (220/50 Hz. with 250 W PD connected)
Max. Heat Dissipation 50.35 BTU/h (no PD connected)
1029.79 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode (Ports 1-8)
  • Isolation Mode (Ports 1-24)
  • PoE Auto Recovery (Ports 1-24)
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
Transmission Method Store-And-Forward

OTHERS
Certification CE, FCC, RoHS
Package Content
  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
Environment
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
