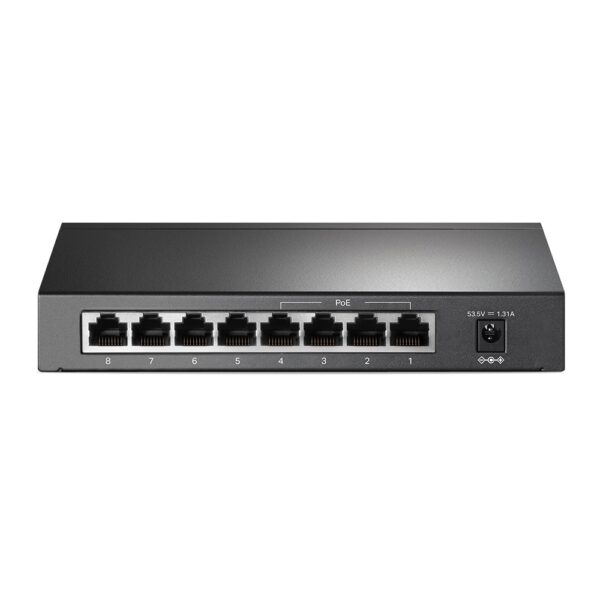

TP-Link TL-SG1008P

8-Port Gigabit Desktop Switch with 4-Port PoE+

8× 10/100/1000 Mbps RJ45 ports.
4× PoE+ ports transfer data and power on individual cables.
Works with IEEE 802.3af/at compliant PDs.
Plug and Play, no configuration and installation required.
802.1p/DSCP QoS enable smooth latency-sensitive traffic.
Supports PoE power up to 30 W for each PoE port.
Supports PoE power up to 64 W for all PoE ports.
Up to 250m data and power transmitting range under Extend Mode.
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate	11.904 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 64 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	16 Gbps
Dimensions ( W x D x H )	6.7×3.9×1.1 in (171×98×27 mm)
Max. Power Consumption	• 4.7 W (220/50 Hz no PD connected) • 74.39 W (220/50 Hz with 64 W PD connected)
Max. Heat Dissipation	• 16.03 BTU/h (no PD connected) • 253.67 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4)
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Content	• TL-SG1008P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
