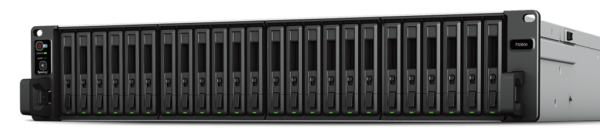

Synology FS3600 24-bay 2.5'' SAS/SATA All-flash storage (up to 72-bay)

Synology FS3600 24-bay 2.5” SAS/SATA All-flash storage (up to 72-bay)

฿0.00 บาท (รวมภาษี)

รหัสสินค้า: FS3600

มีสินค้าอยู่ 200

FS3600



FS3600 is a 24-bay all-flash NAS that lets enterprises boost the performance of I/O sensitive applications such as database, virtualization, and online transaction processing (OLTP) at a competitive total cost of ownership. Powered by Synology’s awardwinning DiskStation Manager (DSM) operating system, FS3600 simplifies data management tasks with an intuitive and efficient user interface. A wide range of integrated data protection features helps maintain high service availability.



Highlights

  • High Performance Over 195,000 iSCSI 4K random write IOPS

  • Easy System Administration Easy to deploy with an intuitive user interface

  • Effortless Capacity Expansion Flexibly scale up to 72 drives2 to increase storage capacity as demand grows

  • Virtualization-Ready Integration with virtualization platforms at no extra cost

  • Protect and Restore Data in a Snap Back up critical data and reduce your Recovery Time Objective (RTO) with Snapshot Replication

  • Boost Business Productivity Build an on-premises, multi-user collaboration environment with fine-grained controls



Specifications :

CPU

CPU Model

Intel Xeon D-1567

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

12-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Yes

Memory

System Memory

16 GB DDR4 ECC RDIMM

Memory Module Pre-installed

16 GB (16 GB x 1)

Total Memory Slots

4

Maximum Memory Capacity

128 GB (32 GB x 4)

Notes

  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

  • For more information on memory upgrade limitations, visit here.

  • For more information on the recommended memory configurations, visit here.

Storage

Drive Bays

24

Maximum Drive Bays with Expansion Unit

48 (RX1217sas x 2) / 72 (FX2421* x 2)

Compatible Drive Type* (See all supported drives)

  • 2.5″ SAS HDD*

  • 2.5″ SAS SSD*

  • 2.5″ SATA SSD

Hot Swappable Drive*

Yes

Notes

  • 2.5″ SAS HDD and 2.5″ SAS SSD only indicate the drive types that may be compatible with Synology devices. For supported drive models, please refer to the device’s compatibility list.

  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*

2

Expansion Port

1

Notes

The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x8 link)

File System

Internal Drives

  • Btrfs

  • EXT4

External Drives

  • Btrfs

  • EXT4

  • EXT3

  • FAT

  • NTFS

  • HFS+

  • exFAT

Notes

exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

Form Factor (RU)

2U

Size (Height x Width x Depth)

88 mm x 482 mm x 724 mm

Weight

14.9 kg

Rack Installation Support*

4-post 19″ rack (Synology Rail Kit – RKS-02)

Notes

The rail kit is sold separately

Others

System Fan

80 mm x 80 mm x 4 pcs

Fan Speed Mode

  • Full-Speed Mode

  • Cool Mode

  • Quiet Mode

Easy Replacement System Fan

Yes

Power Recovery

Yes

Noise Level*

57 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

500 W

Redundant Power Supply

Yes

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

258.23 W (Access)

127.99 W (HDD Hibernation)

British Thermal Unit

881.12 BTU/hr (Access)

436.72 BTU/hr (HDD Hibernation)

Notes

  • Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).

  • Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

  • FCC

  • CE

  • BSMI

  • EAC

  • CCC

  • VCCI

  • RCM
