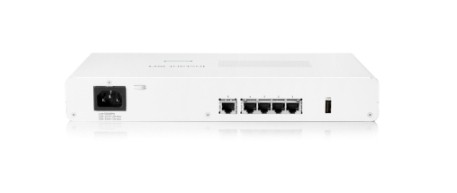

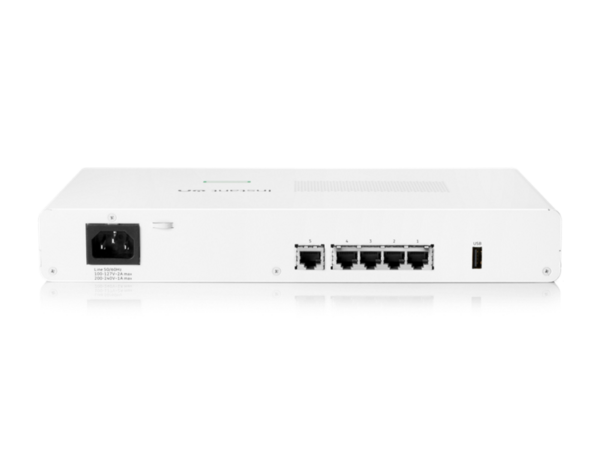

HPE Networking Instant On Secure Gateway 5‑port SmartRate 2.5G PoE+ 64W SG2505P



The HPE Networking Instant On Secure Gateway SG2505P offers five ports, two of them providing multigigabit support. One multi-gig uplink (WAN) port, one multi-gig configurable port (WAN/LAN), one gig configurable port (WAN/LAN), and two one-gig ports (LAN). The 2505P has PoE support with a total power budget of 64W to power network devices such as Instant On access points. With a stateful firewall throughput of 2.3 Gbps, this gateway is ideal for businesses requiring over 1 Gigabit of total throughput from their ISP. Whether you’re a small shop looking to keep the network simple or an AI startup needing to protect your large data workloads, the SG2505P will help you stay connected and more secure.



Features :

Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)

• IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.

• Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.



Keep the Network Safe with a Stateful Firewall

• This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.

• Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.



Keep the Business Online with WAN Resiliency

• This feature enables continuous connectivity during network disruptions using multiple ISP connections.

• The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.



Multi-Gigabit and PoE Ports (SG2505P)

• Great for small and medium businesses with ISP throughputs faster than a gigabit, utilizes the 2.5 G ports on the SG2505P for maximum throughput.

• A PoE budget of 60W makes the SG2505P a smart choice for deploying a compact and easy-to-manage network by powering Instant On access points without an additional switch.



Specifications :

Wi-Fi antenna : NA

Ports : Total ports : 5

WAN Interface: 1x 10/100/1000-Base-T Ethernet

WAN/LAN Configurable Interface: 1x 100/1000/2500-Base-T Ethernet, 1x 10/100/1000-Base-T Ethernet

LAN Interfaces: 2x 10/100/1000-Base-T Ethernet

Mounting : Tabletop, wall, rack

Detailed product description : The HPE Networking Instant On Secure Gateway SG2505P offers five ports, two of them providing multigigabit support. One multi-gig uplink (WAN) port, one multi-gig configurable port (WAN/LAN), one gig configurable port (WAN/LAN), and two one-gig ports (LAN). The 2505P has PoE support with a total power budget of 64W to power network devices such as Instant On access points. With a stateful firewall throughput of 2.3 Gbps, this gateway is ideal for businesses requiring over 1 Gigabit of total throughput from their ISP. Whether you’re a small shop looking to keep the network simple or an AI startup needing to protect your large data workloads, the SG2505P will help you stay connected and more secure.

Differentiator : No of users: Up to 300
