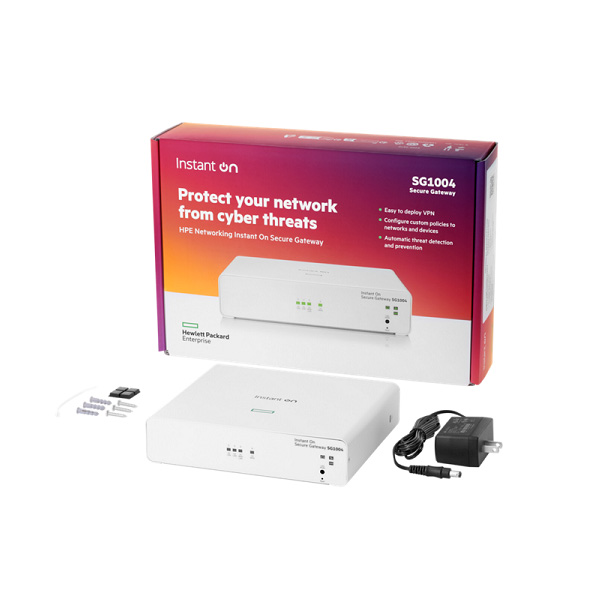

HPE Networking Instant On Secure Gateway 4‑port Gigabit SG1004



The HPE Networking Instant On Secure Gateway SG1004 is a 1 G secure gateway featuring one uplink (WAN) port, two downlink (LAN) ports, and one configurable uplink/ downlink port. With a stateful firewall throughput of 930 Mbps, it is ideal for protecting businesses with less than one Gigabit total throughput from their ISP. The compact design and external power supply make it perfect for branch offices or small businesses like accounting firms or retail shops.



Features :

Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)

• IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.

• Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.



Keep the Network Safe with a Stateful Firewall

• This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.

• Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.



Keep the Business Online with WAN Resiliency

• This feature enables continuous connectivity during network disruptions using multiple ISP connections.

• The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.



Multi-Gigabit and PoE Ports (SG2505P)

• Great for small and medium businesses with ISP throughputs faster than a gigabit, utilizes the 2.5 G ports on the SG2505P for maximum throughput.

• A PoE budget of 60W makes the SG2505P a smart choice for deploying a compact and easy-to-manage network by powering Instant On access points without an additional switch.



Specifications :

Wi-Fi antenna : NA

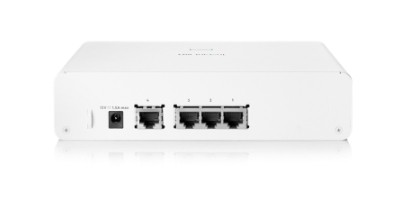

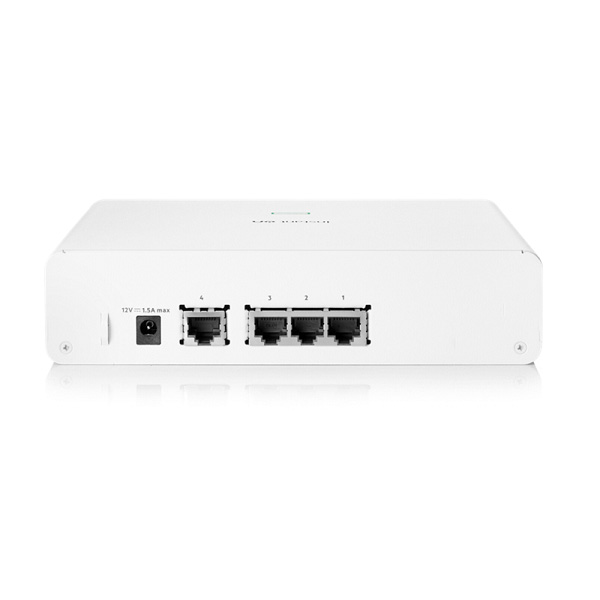

Ports : Total ports : 4

WAN Interface: 1x 10/100/1000-Base-T Ethernet

WAN/LAN Configurable Interface: 1x 10/100/1000-Base-T Ethernet

LAN Interfaces: 2x 10/100/1000-Base-T Ethernet

Mounting : Tabletop, wall

Detailed product description : The HPE Networking Instant On Secure Gateway SG1004 is a 1 G secure gateway featuring one uplink (WAN) port, two downlink (LAN) ports, and one configurable uplink/ downlink port. With a stateful firewall throughput of 930 Mbps, it is ideal for protecting businesses with less than one Gigabit total throughput from their ISP. The compact design and external power supply make it perfect for branch offices or small businesses like accounting firms or retail shops.

Differentiator : No of users: Up to 100

Weight : 1.0 kg (2.3 lb)

Dimensions : 4.3 x 16.5 x 19.1 cm (1.7 x 6.5 x 7.5 in )
