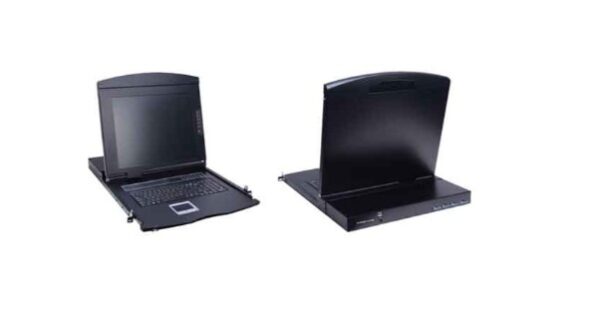

Nexis ML1704 17" LCD CONSOLE with 4-PORT KVM SWITCH (VGA/USB) & 4pcs 1.8m kvm cable

Nexis ML1704 17″ LCD CONSOLE with 4-PORT KVM SWITCH (VGA/USB) & 4pcs 1.8m kvm cable

฿34,200.00 (รวมภาษี)
฿31,962.62 (ไม่รวมภาษี)

รหัสสินค้า: ML1704

มีสินค้าอยู่ 100

Nexis ML1704

17″ LCD CONSOLE with 4-PORT KVM SWITCH (VGA/USB) & 4pcs 1.8m kvm cable



Features

  • Front LCD Console(keyboard, mouse, monitor 17” ) + KVM Module design(1/4/8/16ports); It’s veryflexible and convenient for combination;

  • Extra prepositiveUSB mouse interface;

  • Single port length:462.6mm; Multi-ports length: 611mm



17” LCD Console Specification

Type

17” LCD Console-ML1704

LCD Monitor

Ratio

17” Screen, 4:3

Video

SXGA TFT-LCD

Visible Square

337.920(H) × 270.336(V)

Resolution

1280*1024@60HZ(Opitmum)/1920*1200@60HZ(Max)

Support Color

16.7M (RGB 6 bit + Hi_FRC)

Contrast

1000 : 1 (Typ)

Backlight

LED

Pixel Pitch

0.264×0.297mm

LEDMTBF

100,000 hours

Input power

12V

Keyboard (demountable design)

Keyboard

100Keys, detachable (9 different languages for choose)

Compatible IBM/AT

Microsoft Windows98, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10, Linux OS

Port

Standard PS/2; USB

Using life

>1,000,000 Times

Mouse

Type

Touch Screen

Port

Standard PS/2

X/Y Resolution

>1000dots/inch, (40×40/mm)

Using life

>1,000,000 Times

Installation Dimension

407*445*45mm

Weight

6.15kg



KVM Module Specification

Type

4 Port

Computer Connectionf

Direct Connects

4

Maximum Connects

64

CPU Port Selection

OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)

Connectors

Console Connector

DB 37PIN

PC Connector

Monitor, Keyboard/Mouse Switch Module

4 x VGA DB15, Female Blue

Power

1 x DC Jack

Network Port

1 x RJ45(Optional)

Switch

Connection Port Selection

KVM Operation Panel Digital keys

KVM Reset

KVM Operation Panel Function Keys

IP Module Reset

1 x semi-embedded key

IP Module Default

1 x semi-embedded key

LED’s

Selected

Nixie Tube Display

Online

4 x Red

IP Network

1 x Green, 1 x Orange

Analog Mode

Keyboard/Mouse

USB, PS/2

Resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environmentsdfdf

Operating temperature

-10-50˚C

Storage temperature

-20-60˚C

Humidity

0-80%RH, No Condensation

Physical Properties

Housing

Metal

Dimension

148.4*445*45mm

Weight

2.7kg
