Model

KE861D-TX

KE861D-RX

modules

1 x KE861D-TX (Transmitter Unit)

1 x KE861D-RX (Receiver unit)

PC connections

1

–

connections

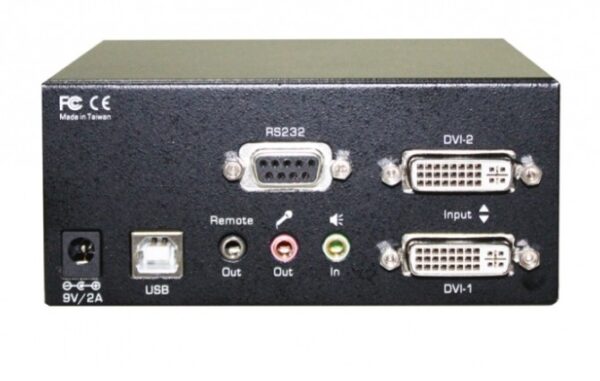

2 x DVI-D socket
(not adaptable from / to VGA)1 x IR Remote “Out” socket 1 x USB port (Type B)1 x Mi krofon “Out” socket1 x loudspeaker “in” socket1 x RJ45 socket (LAN or 1: 1)

2 x DVI-D  socket
(not adaptable from / to VGA)1 x IR remote ” In” socket4 x USB port (Type A)1 x Mi krofon “ in” socket1 x speaker “Out” socket1 x RJ45 socket (LAN or 1: 1)

LEDs

1 x power (red) 1 x link (green)

switch

2 x buttons1 x 3 dip switch

DVI video resolution

up to 1920 x 1200 / 60Hz / Full HD 1080p – 100m (digital)

Operating temperature

0 – 40 ° C

Storage temperature

-20 – 60 ° C

humidity

0 – 90% RH, Non- Condensing

mass

750g

750g

Dimensions (L x W x H)

120 x 135 x 53.5 mm

casing

Metal

power adapter

2x 9V, 2A DCCurrent consumption of the modules at 9V DC: Transmitter approx. 0.5A, receiver approx. 0.4A (monitor, as well as standard keyboard and standard mouse connected).

Approvals

FCC, CE
