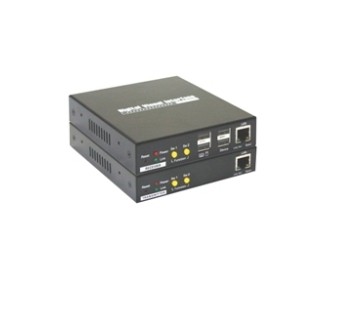

Nexis KE861

CAT5 DVI KVM Extender Over LAN w/ Audio & Mic

KE861 the CAT5 DVI KVM Extender Over LAN w/ Audio & Mic, consists of two individual untis: Transmitter (KE861-TX) and Receiver (KE861-RX). With these two units at hand, they are able to extend the distance between remote and local console up to 100 meters away via a CAT5 cable, including keyboard, monitor, mouse, speaker, microphone, and USB devices. KE861 utilizes new IP extender technology that user can not only deploy remote console in a more flexible manner, but also enjoy the high resolution rate of 1920 x 1080 @ 60 Hz / Full HD 1080p at the same time. It’s an ideal solution for use in an exhibition room, worling floors, security room, locked server room, control center, or other mission-critical scenarios. Furthermore, KE861 support Graphic Mode & Video Mode selection to suit display requirements. Graphic mode is optimized for still graphic displays; while video mode is best for a dynamically changing video stream.

Features :

• CAT5 DVI KVM Extender Over LAN

• Extension distance up to 100 m / 330 ft. over a single CAT5 UTP cable segment.

• Extending another 100 m by adding the Giagabit Ethernet Switch through CAT5 cable between Transmitter and Receiver Units.

• 4 x USB 2.0 ports with USB extension over IP for keyboard, mouse and other devices.

• Support Audio and Mic. extension over LAN

• Digital video resolution support up to 1920 x 1080 / Full HD 1080p up to 100 m

• Graphic Mode and Video Mode for selection

• Fully compatible with USB HID device for any keyboard, mouse and  USB devices

• Supports multiplatform OS such as Windows 95 / 98 / 2000 / XP / Vista / 7 / Windows 8 and Linux

• Easy Plug-and-Play application, no configuration required

• Optional IR Remote Control Unit accessories available

Specifications :
