Technical

HDMI Compliance

HDMI 2.0b, DisplayPort 1.2a

HDCP Compliance

HDCP 2.2

Video Bandwidth

18 Gbps

Video Resolution

4096×2160@24/25/30/50/60Hz,
3840×2160@24/25/30/50/60Hz,
2048x1080p,[email protected]/24/25/29.97/30/50/59.94/60Hz,
1080i@50/59.94/60Hz,
720p@50/59.94/60Hz,
576p, 576i, 480p, 480i

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0

Color Depth

8/10/12-bit

HDR

HDR10, HDR10+

HDMI Audio Formats

Dolby Atmos, TrueHD, Digital+, Digital; DTS X,

HD Master Audio, HD High Resolution Audio, 5.1;

PCM 2-8Ch

Transmission Distance

Max distance (1080p) : 230ft / 70m over CAT6/6a/7

Max distance (4K): 131ft / 40m over CAT6/6a/7

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

ESD Protection ±4kV (Contact discharge)

Connection

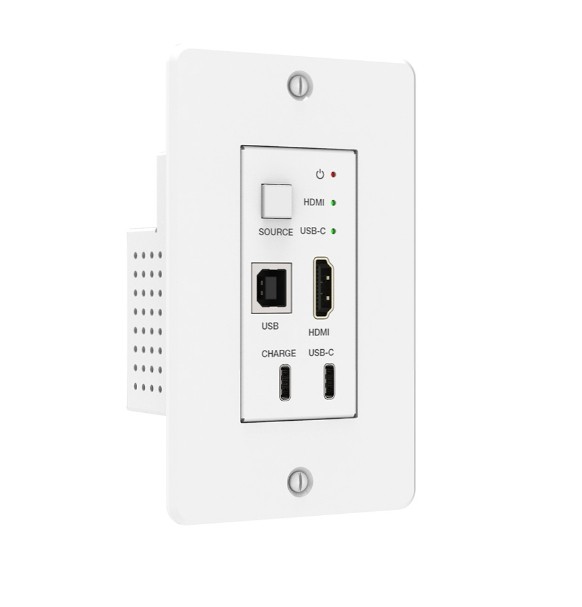

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

1x USB-C

Outputs: 1x HDBaseT Out [RJ45, 8-pin female]

1x USB-C (only for charging)

Control: 1x USB-B [Micro USB, Update port]

Receiver

Inputs: 1x HDMI IN [Type A, 19-pin female]

1x HDBaseT IN [RJ45, 8-pin female]

Outputs: 1x HDMI OUT [Type A, 19-pin female]

1x AUDIO OUT [Phoenix jack]

Control: 2x USB [USB A TYPE]

1x FW [Micro USB, Update port]

Mechanical

Housing

Metal Enclosure

Color

White / Black

Dimensions

Wall plate:

33.3mm [W] x 65.7mm [D] x 68.7mm [H]

Faceplate:

69.9mm [W] x 3mm [D] x 114.3mm [H]

Receiver:

200mm [W] x 98mm [D] x 23mm [H]

Weight

Wall plate: 196g, Receiver: 511g

Power Supply

POE (only from Receiver to Transmitter)

Power Consumption

Wall plate: 9W (Max), Receiver: 11W (Max)

Operating Temperature

32 – 104°F / 0 – 40°C

Storage Temperature

-4 – 140°F / -20 – 60°C

Relative Humidity

20 – 90% RH (no condensation)
