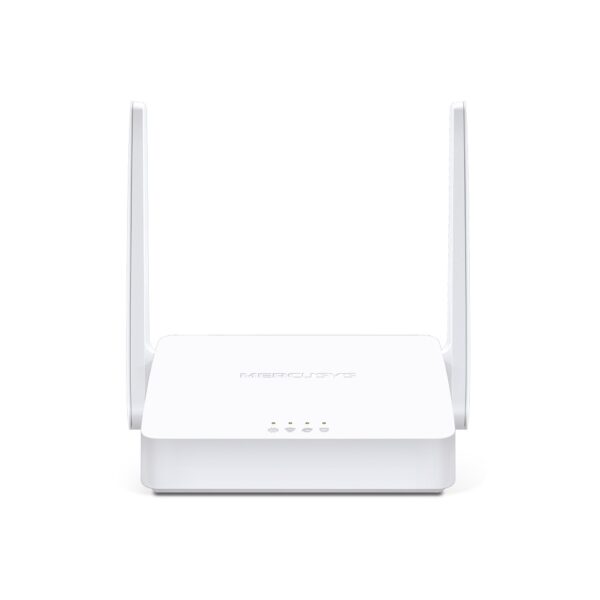

Mercusys MW301R

300Mbps Wireless N Router



Bigger Coverage with Two Powerful Antennas

With its two 5dBi antennas that work to boost its reception and signal sensitivity, the MW301R provides broad wireless coverage.



300Mbps Wireless Speed

The MW301R provides fast, stable Wi-Fi for your connected devices. Wireless speeds of up to 300Mbps make it ideal for HD streaming, online gaming, and rapid file downloads.



Superior Online Experience with IPv6 & IPTV

Compatible with IPv6, MW301R allows you to enjoy IPv6 services provided by ISP and visit IPv6 websites. IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming for high network efficiency and superior online experience.



Network Security

Comprehensive security features help your devices form safe connections to the MW301R.



Specifications :

Brand	MERCUSYS
Model	MW301R
Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antennas	2 x 5dBi fixed omni directional antennas
Transmit/Receive	Transmission Power : <20dBm
Frequency	2.4 – 2.4835GHz
Wireless Functions	WDS bridge
Interface	2 x 10/100Mbps LAN ports 1 x 10/100Mbps WAN port
Button	RESET
Data Rate	11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
Management	Parental Control Access control Local management Remote management
Power Supply	5VDC / 0.6A
Environment	Operating temperature : 0°C ~ 40°C (32°F ~ 104°F) Storage temperature : -40°C ~ 70?C (-40°F ~ 158°F) Operating humidity : 10% ~ 90%, non-condensing Storage humidity : 5% ~ 90%, non-condensing
Certification	CE, ROHS
Package Contents	MW301R Power adapter Quick Installation Guide Ethernet cable
Dimension	(W x D x H) : 13.37 x 9.33 x 2.58 cm
