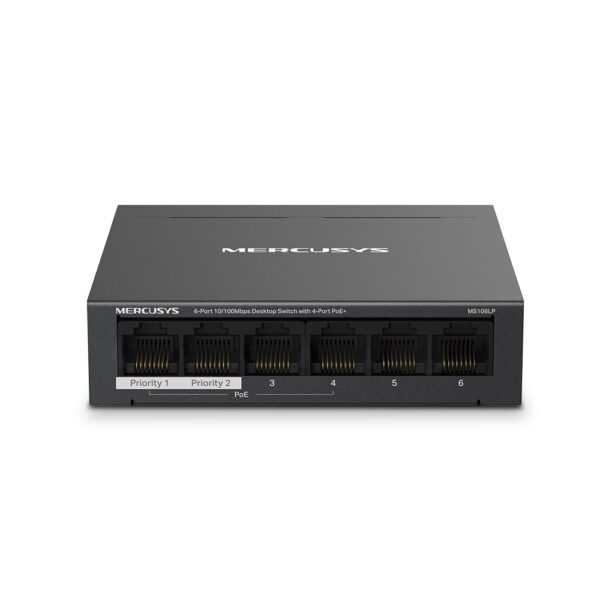

Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

฿570.00 (รวมภาษี)
฿532.71 (ไม่รวมภาษี)

รหัสสินค้า: MS106LP

มีสินค้าอยู่ 100

Mercusys MS106LP

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+



4 PoE+ Ports (40 W Budget) for Network Deployment

Ports 1-4 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.



Long-Range up to 250 m with Extend Mode

Extend Mode** increases PoE transmission distance to 250 m. MS106LP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.



Durable and Silent

MS106LP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.



Specifications :

Brand

MERCUSYS

Model

MS106LP

Network Interface

6 x 10/100 Mbps PoE ports

2 x 10/100 Mbps Uplink ports

USB Port

N/A

Standards and Protocols

802.3 af/at Powered Devices

Switching Capacity

1.2 Gbps

MAC Address Table

2k, Auto-learning, Auto-aging

Forwarding Rate

Store and Forward

Jumbo Frame

2 KB

LED Indicators

Power, Link/Act, PoE Status

Security

One click to divide traffic for specific ports for stability and security

Material

Metal

PoE

PoE Standard: compatible with 802.3af/at PDs

PoE Port 1–4, up to 30 W per port

PoE Power Budget 40 W

Power Supply

External Power Adapter (Output: 53.5V/0.81A)

Power Consumption

1.87W (22/50 Hz, no PD connected)

44.8W (220/50 Hz, with 40W PD connected)

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing

Certifications

CE, RoHS

Package Contents

MS106LP

Power Adapter

Rubber Feet

Quick Installation Guide

Dimension

(W x D x H) : 9.98 x 9.80 x 2.50 cm

Net Weight

0.00 KG

Package Dimension

(W x D x H) : 12.00 x 14.05 x 8.05 cm

Gross Weight

0.45 KG

Volume

1,357.23 cm3
