MODEL

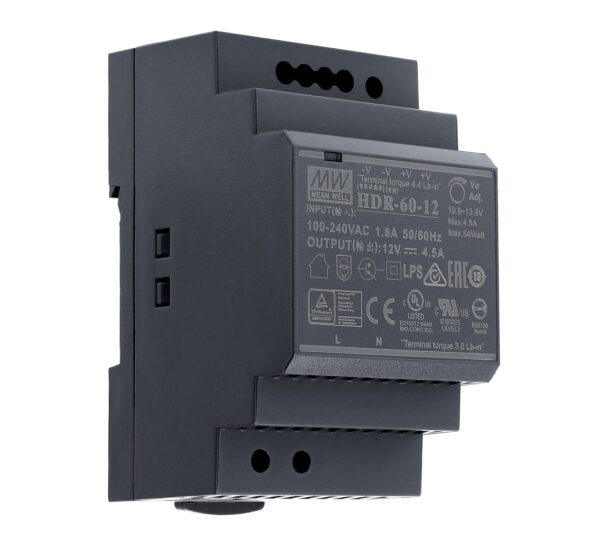

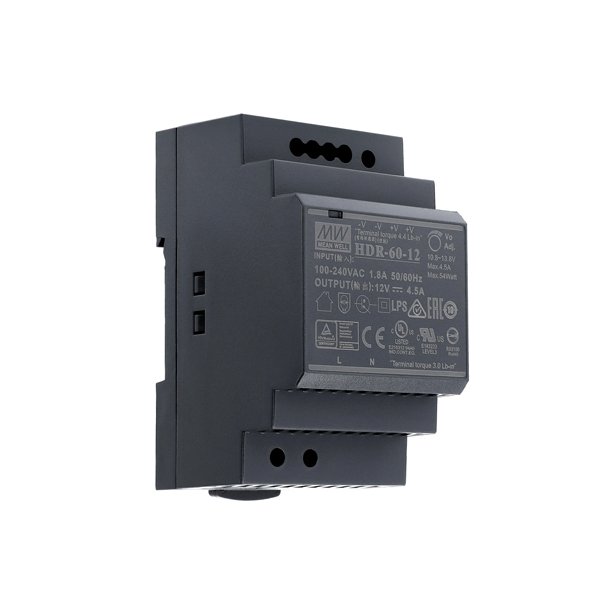

HDR-60-12

OUTPUT

DC VOLTAGE

12V

RATED CURRENT

4.5A

CURRENT RANGE

0 ~ 4.5A

RATED POWER

54W

RIPPLE & NOISE (max.) Note.2

120mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.8V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±1.0%

SETUP, RISE TIME

500ms, 50ms/230VAC         500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

30ms/230VAC        12ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC (277VAC operational )       120 ~ 370VDC (390VDC operational )

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

88%

AC CURRENT (Typ.)

1.2A/115VAC        0.8A/230VAC

INRUSH CURRENT (Typ.)

COLD START 30A/115VAC        60A/230VAC

PROTECTION

OVERLOAD

105 ~ 160% rated output power

Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed

Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed

OVER VOLTAGE

14.2 ~ 16.2V

Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-30 ~ +70℃ (Refer to “Derating Curve”)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH non–condensing

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃) RH non–condensing

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

OPERATING ALTITUDE

2000 meters

OVER VOLTAGE CATEGORY

Ⅲ;According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters

SAFETY & EMC

(Note 4)

SAFETY STANDARDS

UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN62368-1

WITHSTAND VOLTAGE

I/P-O/P:4KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Parameter

Standard

Conducted

EN55032(CISPR32), CNS13438

Radiated

EN55032(CISPR32), CNS13438

Harmonic Current

EN61000-3-2

Voltage Flicker

EN61000-3-3

EMC IMMUNITY

EN55024, EN55035, EN61000-6-2, EN61204-3

Parameter

Standard

ESD

EN61000-4-2

Radiated Susceptibility

EN61000-4-3

EFT/Burest

EN61000-4-4

Surge

EN61000-4-5

Conducted

EN61000-4-6

Magnetic Field

EN61000-4-8

Voltage Dips and interruptions

EN61000-4-11

OTHERS

MTBF

927.6K hrs min.     MIL-HDBK-217F (25℃)

DIMENSION

52.5*90*54.5mm (W*H*D)
