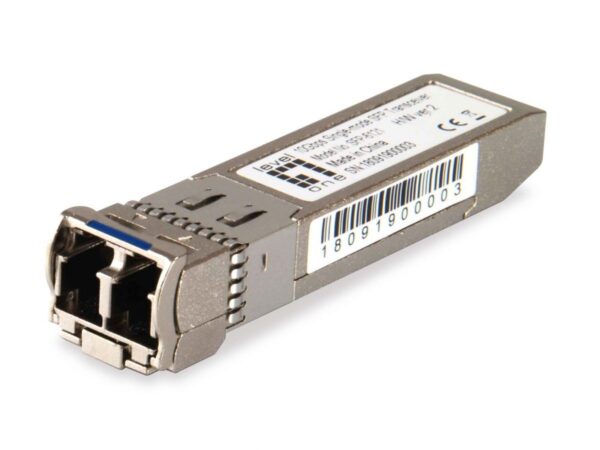

Levelone SFP-6121 10Gbps Single-mode SFP Transceiver, 10km, 1310nm
รหัสสินค้า: SFP-6121
มีสินค้าอยู่ 100
Product successfully added to the Quote List
SFP-6121
10Gbps Single-mode SFP Transceiver, 10km, 1310nm
LevelOne SFP-6121 SFP-Plus Transceiver is hot-swappable multi-purpose optical module supports 10Gigabit Ethernet applications across most switching and routing platforms. The transceiver supports to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 10km (SMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-6121 adopts the most advanced technology to minimize the power consumption in ultra-high speed.
Description :
-
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
-
Provides duplex LC connector
-
Hot-swappable providing non-stop service
-
RoHS compliant and Lead Free
-
Compatible with SFP Multi-Sourcing Agreement (MSA) standards
Specifications :
|
Port Configuration |
|
|---|---|
|
10-Gigabit single-mode LC |
1 |
|
Specifications – General |
|
|
Color |
Silver |
|
EAN |
4015867180600 |
|
Model Number |
SFP-6121 |
|
Specifications – Features |
|
|
Features |
Hot-swappable 9/125 µm Single-mode Fiber |
|
Specifications – Miscellaneous |
|
|
Grade |
Commercial |
|
Transceiver Type |
SFP+ |
|
Fiber Optical Mode |
Single-Mode |
|
Specifications – Others |
|
|
Approval and Compliance |
EMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2″ EMI compatible with FCC Part 15 Class EN55022 Class B (CISPR 22B) VCCI Class B. Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2″ RoHS Directive 2011/65/EU MIL-STD-883 Method 3015 |
|
Operating humidity |
0% RH ~ 85% RH |
|
Operating temperature |
0°C ~ 70°C |
|
Storage temperature |
-40°C ~ 85°C |
|
Package Contents |
SFP-6121, Quick Installation Guide |
|
Specifications – Performance |
|
|
Receiver sensitivity |
-14.4dBm |
|
Specifications – Physical Specifications |
|
|
Dimensions (W x D x H) |
13.7 x 57 x 12 mm |
|
Product weight (kg) |
0.02 |
|
Specifications – System specifications |
|
|
Standards |
IEEE 802.3ae 10GBASE-LR/LW |
|
Data rate |
10Gbps Bi-directional data link |
|
Link power budget (dB) |
6.2dB |
|
Wavelength (nm) |
1310 |
|
Power input |
3.3V / 300mA |
|
Power consumption |
1.0W (0~70℃) 1.2W(-40~85℃) |
|
Optical transmission power (dBm) |
-8.2~0.5 dBm |
