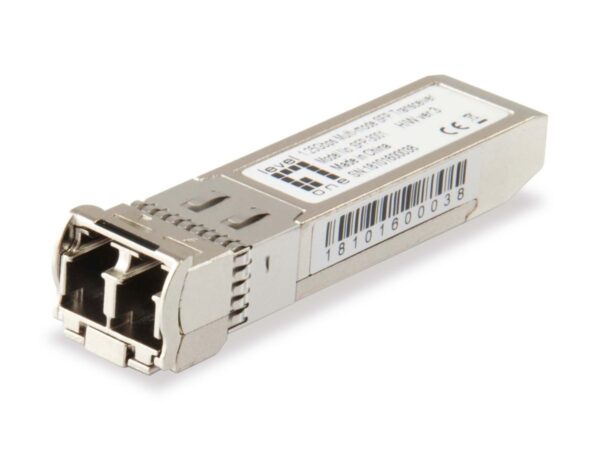

Levelone SFP-3001 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm

Levelone SFP-3001 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm

฿1,050.00 (รวมภาษี)
฿981.31 (ไม่รวมภาษี)

รหัสสินค้า: SFP-3001

มีสินค้าอยู่ 100

SFP-3001

1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm



LevelOne SFP-3001 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 550 meters. The SFP-3001 transceiver operates using a wavelength of 850nm with a VCSEL Laser Diode light source and has an LC port.



Description :

  • IEEE 802.3z Gigabit Ethernet compliant

  • Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring

  • Provides duplex LC connector

  • Hot-swappable

  • RoHS compliant and Lead Free

  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards



Specifications :

Port Configuration

Gigabit multi-mode LC

1

Specifications – General

Color

Silver

EAN

4015867154663

Model Number

SFP-3001

Specifications – Features

Features

Hot-swappable

50/125 ﾵm Multi-mode Fiber

Specifications – Miscellaneous

Grade

Commercial

Transceiver Type

SFP

Fiber Optical Mode

Multi-Mode

Specifications – Others

Approval and Compliance

EMC Directive 2014/53/EU

IEC 61000-4-3 / IEC 61000-4-2 , MIL-STD-883 Method 3015″

EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B.

Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2″

RoHS Directive 2011/65/EU

SFP Multi-Sourcing Agreement(MSA)

SFP MSA SFF-8074i Compliant

Operating humidity

0% RH ~ 85% RH

Operating temperature

0°C ~ 70°C

Storage temperature

-40°C ~ 85°C

Package Contents

SFP-3001,

Quick Installation Guide

Specifications – Performance

Receiver sensitivity

-18dBm

Specifications – Physical Specifications

Dimensions (W x D x H)

13.7 x 57 x 12 mm

Product weight (kg)

0,02

Specifications – System specifications

Standards

IEEE 802.3z 1000Base-SX

Data rate

Up to 1.25Gb/s data links

Link power budget (dB)

9dB

Wavelength (nm)

850

Power input

3.3V / 250mA

Power consumption

800mW

Optical transmission power (dBm)

-9 to -4 dBm
