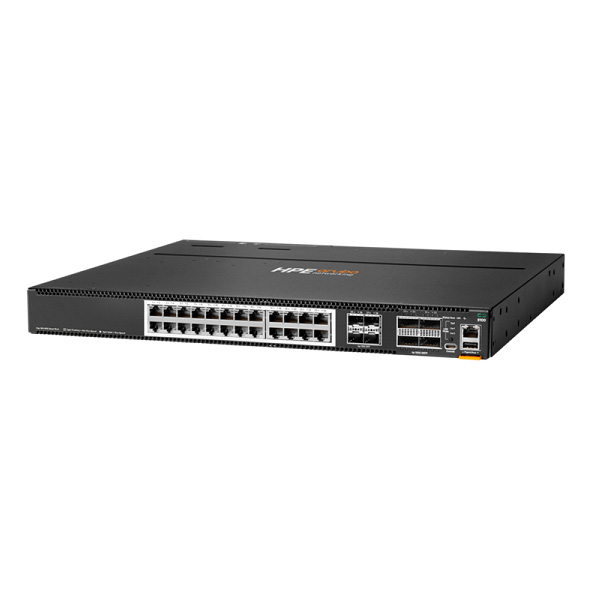

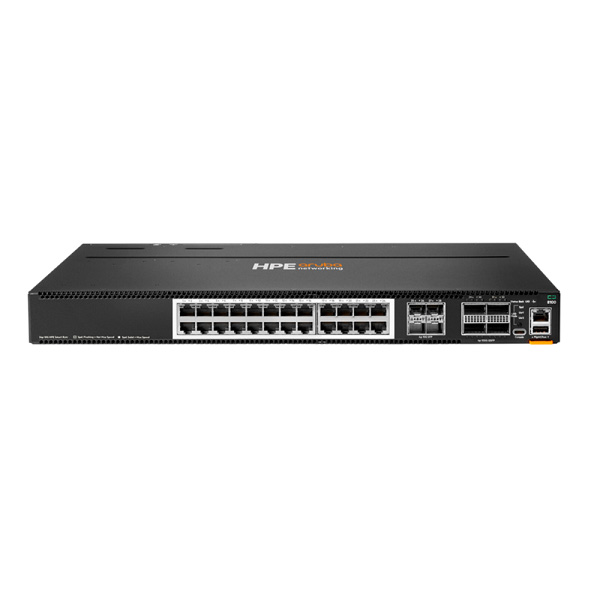

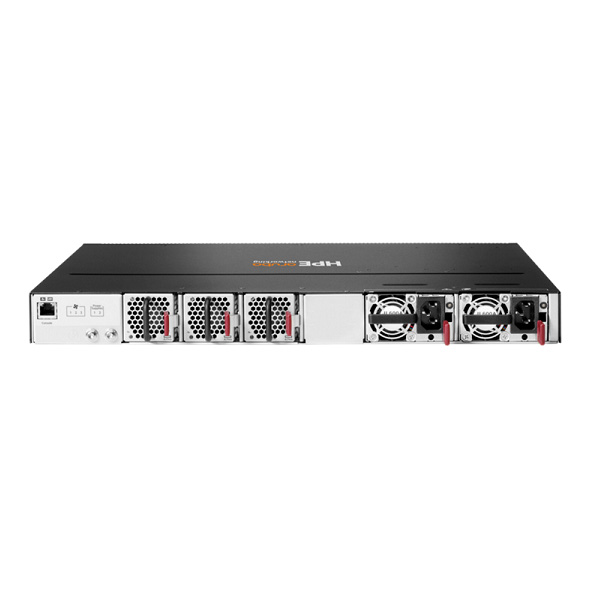

HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle
HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle
HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle
  1. HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle
  2. HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle
  3. HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle

HPE R9W89A CX 8100 24x10GBase-T 4x10G SFP+ 4×40/100G QSFP28 BF 3Fan 2AC PSU Switch Bundle

฿793,303.35 (รวมภาษี)
฿741,405.00 (ไม่รวมภาษี)

รหัสสินค้า: R9W89A

มีสินค้าอยู่ 200

HPE R9W89A

HPE Aruba Networking CX8100 Switch Series



The HPE Aruba Networking CX 8100 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the nextgeneration core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 1.76 Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, and 100 Gbps.

The CX 8100 series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4×10 Gbps and 4×25 Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation.

These switches deliver a fantastic investment for customers requiring 1GbE/10GbE with a mix of fiber and copper ports, and 40/100GbE uplink ports.



Key features :

  • High-performance 1.76Tbps and 1,309 Mpps
  • Intelligent monitoring and visibility with HPE Aruba Networking Network Analytics Engine
  • High availability with industry leading VSX redundancy, and redundant power supplies and fans
  • Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
  • HPE Aruba Networking OS-CX automation and programmability using built-in REST APIs and Python scripts
  • Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
  • Addition of Smart Rate (1/2.5/5/10G) ports on the CX 8100-40XT8XF4C and CX 8100-24XT4XF4C



Specifications :

Differentiator CX 8100 24 x 10G 4 x 10G 4 x 40/100G back-to-front bundle
Power consumption Maximum: 400W
Idle: 120W
Heat dissipation 1364 BTU/hr
Input voltage 100–127V 7.1A for 100–127 VAC
200–240V 3.4A for 200–240 VAC
Ports 24 ports of 100M/1/2.5/5/10GbE
4 ports of 1/10GbE (SFP/SFP+)
4 ports of 40/100GbE (QSFP+/QSFP28)
Switching capacity 1.36 Tbps
Throughput 1,309 Mbps
Memory and processor CPU: Quad Core Arm® Cortex™ A72 @ 1.8 GHz
Memory and flash: 16 GB RAM, 32 GB Flash/storage
Packet buffer: 32 MB
Power supply Bundles include the 2 power supplies (2 x JL712A in R9W87A, R9W89A, R9W91A, and R9W93A)
Management features RJ-45 serial and USB-C console
RJ-45 Ethernet port
USB Type-A
Operating temperature 32°F to 104°F (0°C to 40°C) up to 5000 ft depending on the model
