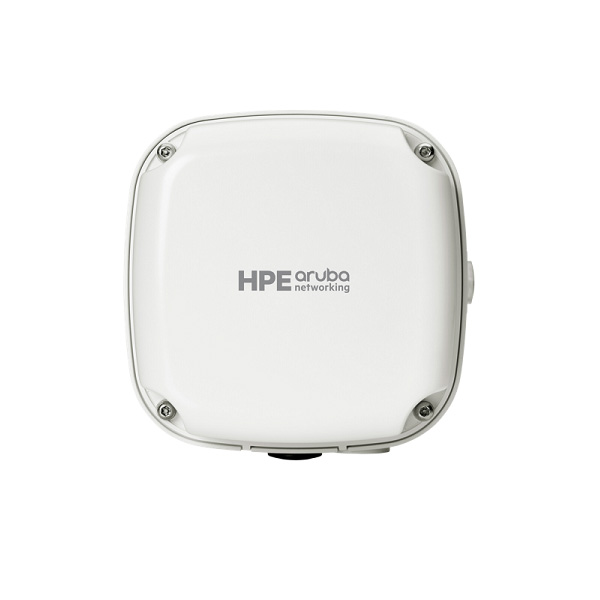

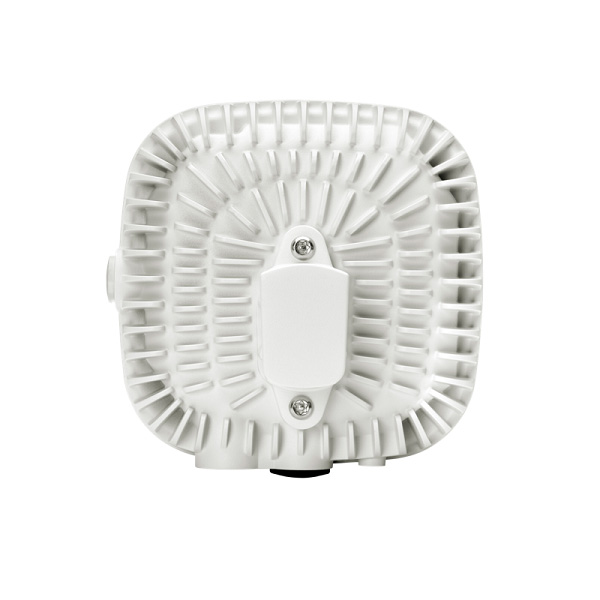

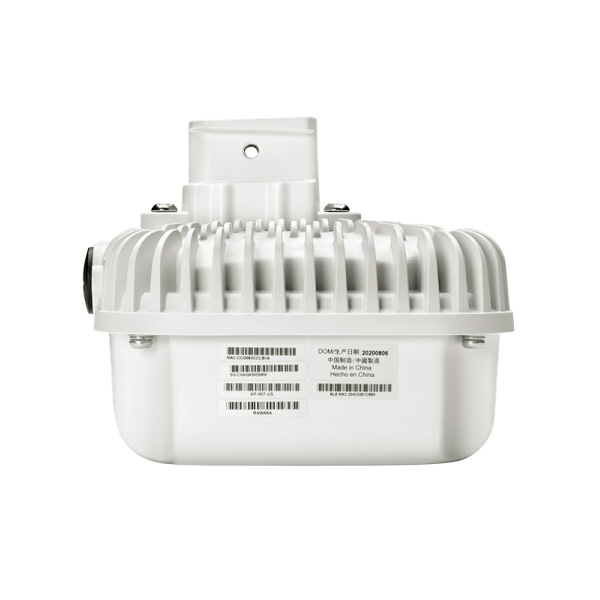

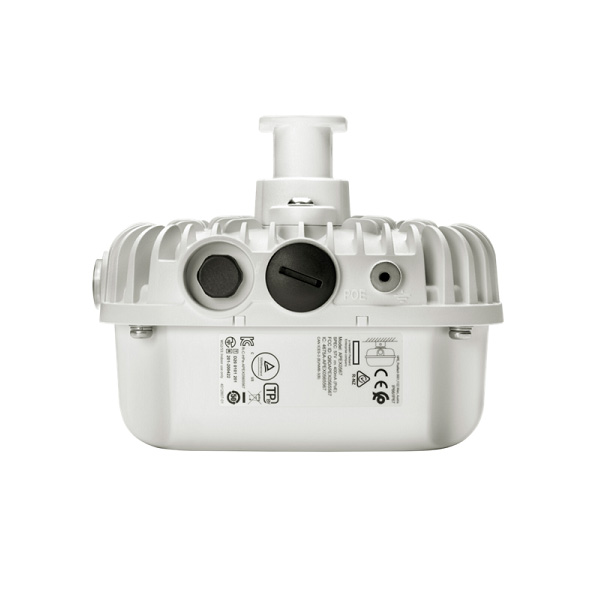

HPE R4W43A

HPE Aruba Networking AP‑565 (RW) 802.11ax Dual 2×2 Radio Integrated Omni Antennas Outdoor AP



The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors.

These Wi-Fi 6 outdoor access points are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and virtual private networks (VPNs). AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 series outdoor APs include a limited lifetime warranty.



Features :

Entry-level Outdoor Wi-Fi 6

• HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.
• Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +55˚C, including full solar loading.
• With peak aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments
• It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
• Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.

IoT Ready

• HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
• The AP supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
• Target wake time (TWT) improves battery life of IoT devices.
• HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Simple Access With Enhanced Security

• The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
• It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.
• The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
• For enhanced device assurance, the access points include an installed trusted platform module (TPM).



Specifications :

SKU	R4W43A
Brand	HPE Aruba
Model	Aruba Access Point-565 (RW) Outdoor 11ax AP
Interface	10/100/1000BASE-T (RJ-45) Auto-sensing link speed and MDI/MDX PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 or higher) 802.3az Energy Efficient Ethernet (EEE)
Wi-Fi Radio Specifications	Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2×2 MIMO and 2.4 GHz 2×2 MIMO
Wi-Fi Antennas	Built-in Omni Directional Antennas
Dimension	16.5 cm (W) x 16.5 cm (D) x 11 cm (H)
Weight	1.03 kg/2.27 lbs
Power sources and consumption	Maximum (worst-case) power consumption: 15.6W Maximum (worst case) power consumption in idle mode: 4.2W Maximum (worst case) power consumption in deep-sleep mode: 1.7 Power sources sold separately Power over Ethernet (PoE+): 802.3at-compliant
Mounting	Optional
