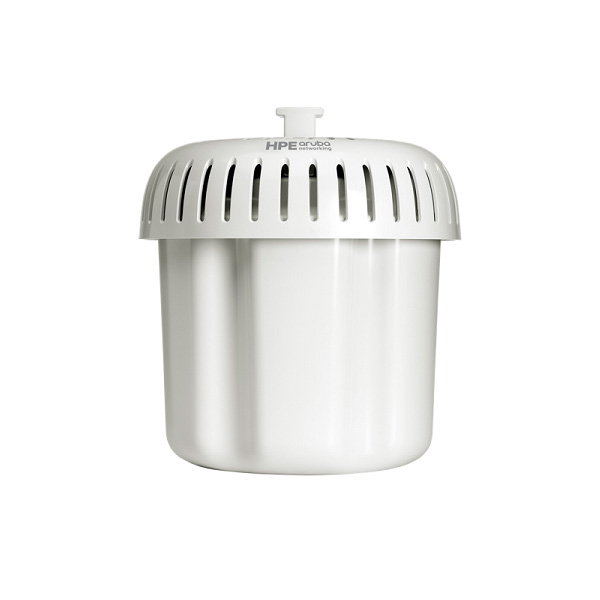

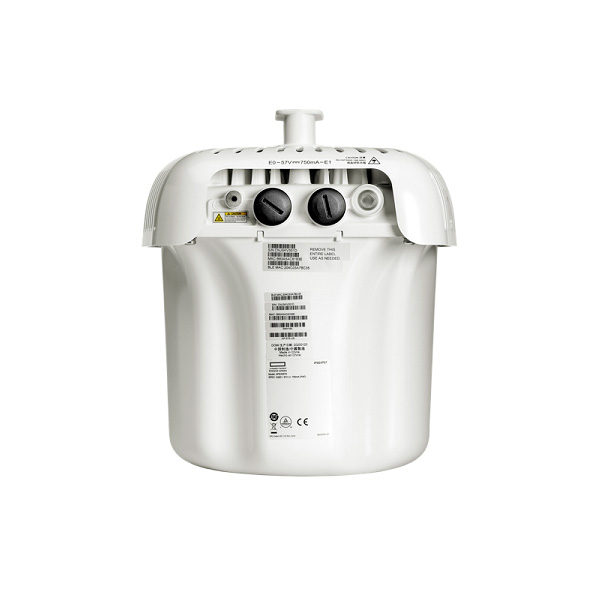

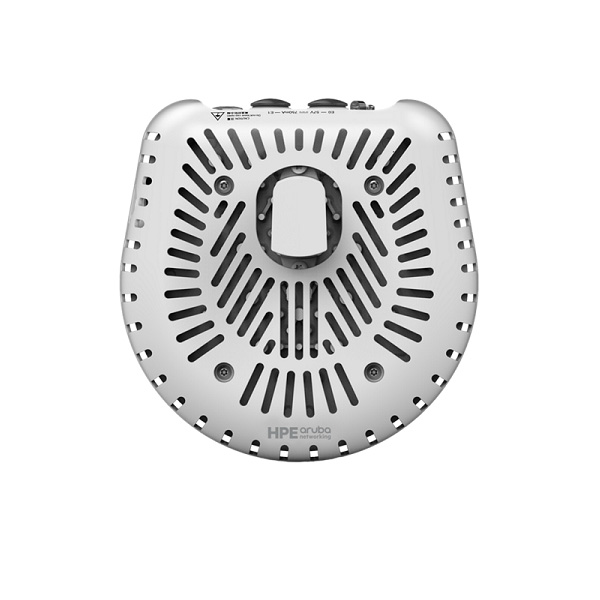

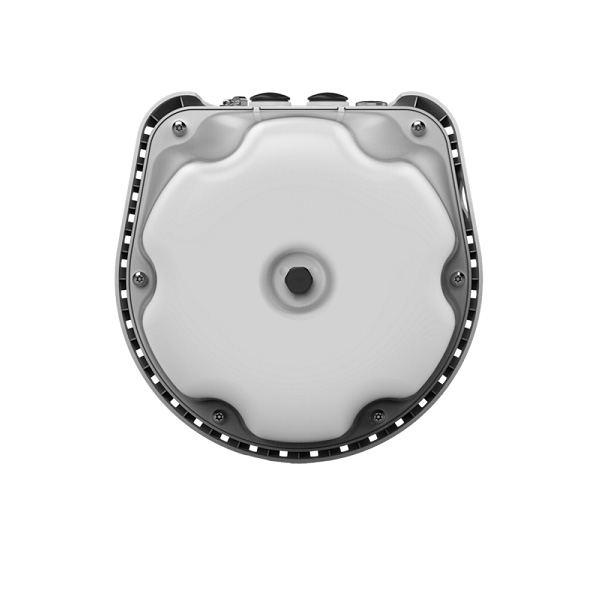

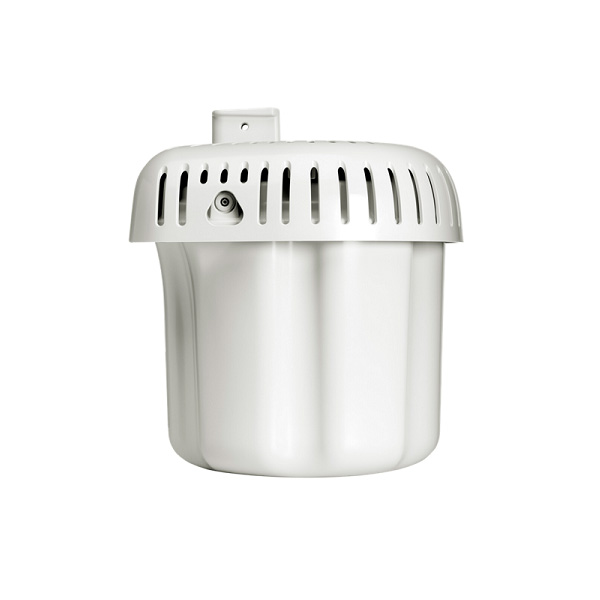

HPE R4H17A

HPE Aruba Networking 570 Series wireless access points



High performance Wi-Fi 6 (802.11ax) for outdoor environments

High-performance Wi-Fi 6 ideal for harsh outdoor weather conditions such as parking lots, stadiums, and public venues.

Maximum density. Highest performance.

Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots.

High performance, in any weather

Ensures predictable, secure, and optimized connectivity with 2.69 Gbps maximum speed and Wi-Fi 6 support for large, outdoor, harsh weather events and environments.

IoT-ready Bluetooth 5 and 802.15.4/Zigbee

Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

Dynamic Segmentation and policy enforcement-firewalls

Enforces (automatically) consistent policies across all networks, keeping users and devices secure.

AI-powered Wi-Fi RF management and automation with AirMatch

Utilizing AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.

Air Slice for SLA-grade performance

Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.



Specifications :

SKU	R4H17A
Brand	HPE Aruba
Model	Aruba Access Point-575 (RW) Outdoor 11ax AP
Interface	HPE SmartRate port (RJ-45) Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX 2.5Gbps speed complies with NBase-T and 802.3bz specifications PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher) 802.3az Energy Efficient Ethernet (EEE)
Wi-Fi Radio Specifications	Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO
Wi-Fi Antennas	Built in Omni Directional Antennas
Dimension	240mm (W) x 240mm (D) x 270mm (H) / 9.4″ (W) x 9.4″ (D) x 10.6″ (H)
Weight	2.5 kg / 5.6 lbs
Power sources and consumption	Maximum (worst-case) power consumption: PoE powered (dual ports): 32.0W PoE powered (single port, full function): 26.1W Maximum (worst-case) power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE) Maximum (worst-case) power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)
Mounting	Optional
