HPE JL557A

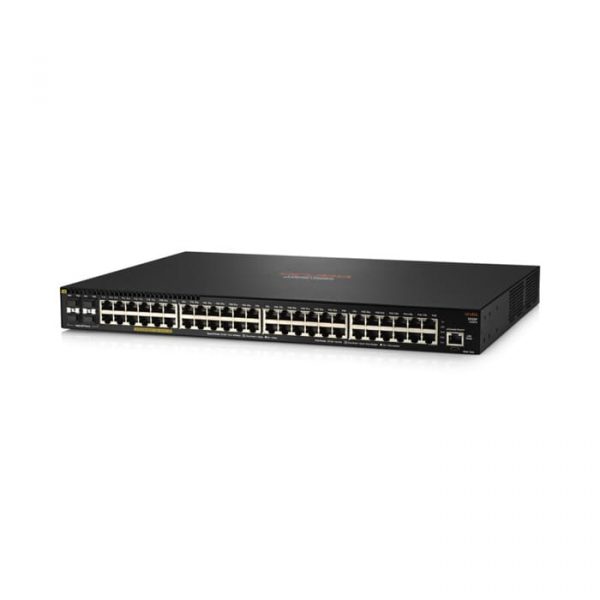

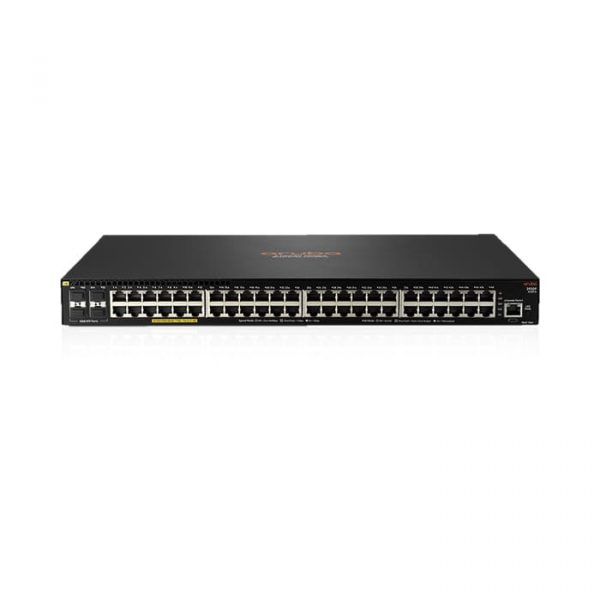

Name: HPE JL557A Aruba 2930F 48GPoE+4SFP 740W Switch
Brand: HPE-ARUBA
SKU: JL557A
Availability: InStock

HPE Aruba Networking 2930F Switch Series

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloudbased Aruba Central.

A powerful Aruba ProVision ASIC delivers performance , robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.

The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.

Key Features :

Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
Software defined ready with REST APIs and OpenFlow support
Simple deployment with Zero Touch Provisioning

Specifications :

SKU	JL557A
Brand	Aruba
Model	(JL557A) Switch “Aruba” 2930F 48GPoE+4SFP 740W
I/O Ports and Slots	48 RJ-45 autosensing 10/100/1000 ports, 4 SFP 1G ports
Memory and Processor	Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress,4 GB eMMC
Throughput	up to 77.4 Mpps
Switch Capacity	104 Gbps
MAC address table size	32768 entries
Frequency	50/60 Hz
AC voltage	100 – 127 / 200 – 240 VAC, rated
Management	Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB)
Dimension	17.42 (w) x 12.77 (d) x 1.73 (h) in (44.25 x 32.42 x 4.39 cm) (1U height)
Weight	10.56 lb (4.79 kg)
