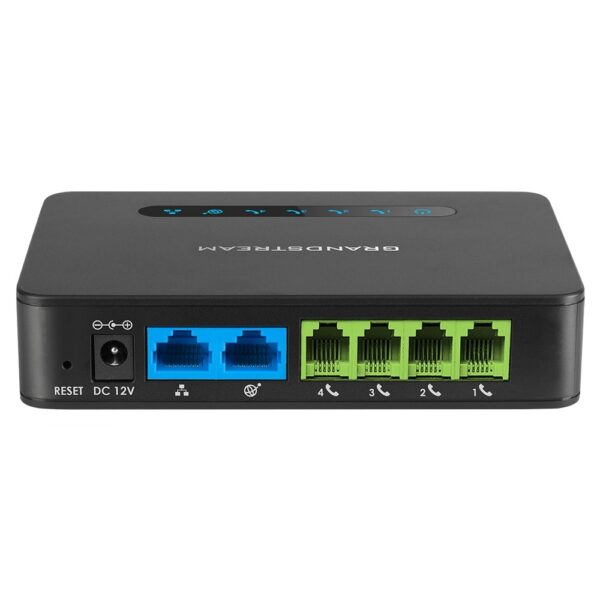

HT-814

Powerful 4 port FXS Gateway with Gigabit NAT Router



The HT814 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable, robustnetwork. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT814 comes with 4 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

Features

• Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports

• Includes a built-in NAT router which can handle routing speeds up to 100MBps

• TLS and SRTP security encryption technology to protect calls and accounts

• Automated provisioning options include TR-069 and XML config files

• Supports 3-way voice conferencing

• Failover SIP server automatically switches to secondary server if main server loses connection

• Supports T.38 Fax for creating Fax-over-IP

• Supports a wide range of caller ID formats

• Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning



Specifications :

Interfaces

• Telephone Interfaces: Four(4) RJ11 FXS ports
• Network Interfaces: Two (2) 10/100/1000Mbps RJ45 ports
• LED Indicators: POWER, LAN, WAN, PHONE1, PHONE2, PHONE3, PHONE4
• Factory Reset Button: Yes

Voice, Fax, Modem

• Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference
• Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC,OPUS, dynamic jitter buffer, advanced line echo cancellation
• Fax Over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for FaxPass-through
• Short/Long Haul Ring Load: 2 REN, up to 1km on 24AWG line.
• Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
• Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

• Network Protocols: TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
• QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
• DTMF Method: In-audio, RFC2833 and/or SIP INFO
• Provisioning and Control: HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AESencryption, syslog

Security

• Media: SRTP
• Control: TLS/SIPS/HTTPS
• Management: Syslog support, SSH, remote management using web browser

Physical

• Universal Power Supply:
  – Input: 100-240VAC, 50-60Hz
  – Output: 12V/1.0A
• Environmental:
  – Operational: 32º – 104ºF or 0º – 40ºC
  – Storage: 14º – 140ºF or -10º – 60ºC
  – Humidity: 10 – 90% Non-condensing
• Dimension: 28.5 x 130 x 90 mm (H x W x D)
• Weight: 0.29 Kg

Compliance

• FCC/CE/RCM, K.21
