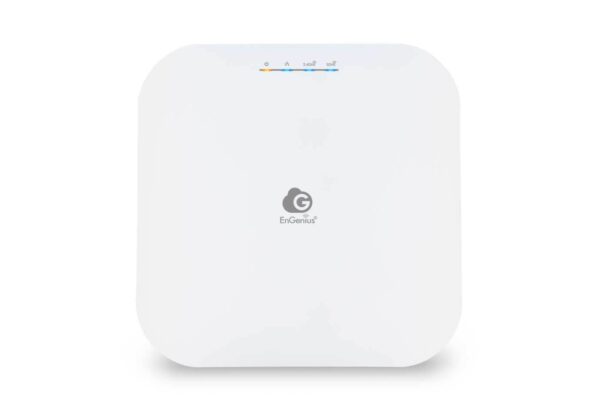

EnGenius ECW230 Cloud Managed Wi-Fi 6 4×4 Indoor Access Point

EnGenius ECW230 Cloud Managed Wi-Fi 6 4×4 Indoor Access Point

฿17,390.00 (รวมภาษี)
฿16,252.34 (ไม่รวมภาษี)

รหัสสินค้า: ECW230

มีสินค้าอยู่ 100

ECW230

Cloud Managed Wi-Fi 6 4×4 Indoor Access Point



EnGenius Cloud Managed Wi-Fi 6 4×4 Indoor  Access Point ECW230 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 2,400 Mbps (5 GHz), and up to 1,200 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it’s easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.



Product Highlight

  • Dual concurrent 802.11ax architecture & backward-compatible.

  • Supercharged speeds up to 2,400 Mbps (5 GHz) & up to1,200Mbps (2.4 GHz).

  • 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet).

  • WPA3 & WPA2-AES authentication support.

  • Cloud Managed with AP & Mesh mode.

  • Quick-scan device register & configuration and remote monitoring & troubleshooting.

  • Cloud manages an unlimited number of APs from anywhere with the EnGenius Cloud App.

  • Mesh wireless support simplifies setup, optimizes signals, and enables  self-heals.



Specifications :

Technical Specifications
Standards IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Antenna 4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna
Physical Interface 1 x 10/100/1000/2500 Ethernet Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators 1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (optional)
Maximum Power Consumption 19.5W
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, AP Mesh, Mesh
Frequency Radio 2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power Up to 20 dBm on 2.4 GHz Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream 4 × 4:4
