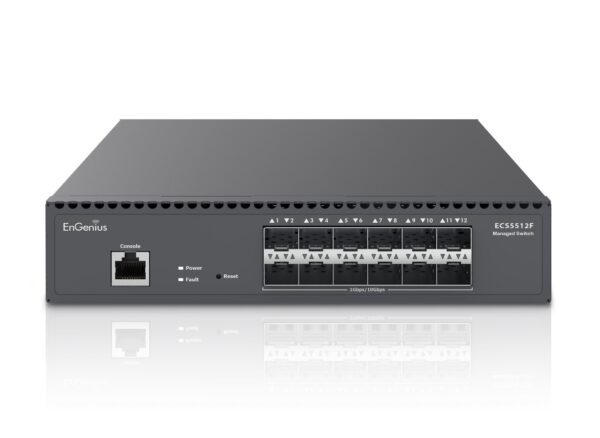

EnGenius ECS5512F Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

EnGenius ECS5512F Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

฿30,250.00 (รวมภาษี)
฿28,271.03 (ไม่รวมภาษี)

รหัสสินค้า: ECS5512F

มีสินค้าอยู่ 100

ECS5512F

Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch



Product Highlights

The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.



  • (12) 10 Gigabit SPF+ Ports

  • Full-Featured Layer 2+ Ethernet Switch

  • 240 Gbps Switching Capacity

  • Half Rack 1U (9.5”) Mount Expandable to Two Switches 1U (19″) per Rack

  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations

  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting

  • Advanced View Displays Network Topology with Devices and Relationships

  • Hybrid Switch Supports Multiple Management Options

  • Security – Access Control List/Port Security; 802.1X & RADIUS Authentication

  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing

  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

  • Voice VLAN for fast, reliable deployment of VoIP services



Specifications :

Manufacturer

EnGenius Technologies, Inc

Manufacturer Part Number

ECS5512F

Manufacturer Website Address

http://www.engeniustech.com

Brand Name

EnGenius

Product Series

ECS

Product Model

ECS5512F

Product Name

Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch

Marketing Information

The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.

  • (12) 10 Gigabit SPF+ Ports
  • Full-Featured Layer 2+ Ethernet Switch
  • 240 Gbps Switching Capacity
  • Half Rack 1U (19″) Mount Expandable to Two Switches per Rack
  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • Advanced View Displays Network Topology with Devices and Relationships
  • Hybrid Switch Supports Multiple Management Options
  • Security – Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

Packaged Quantity

1

Product Type

Ethernet Switch

Interfaces/Ports

Modular

Yes

Port/Expansion Slot Details

12 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported

Optical Fiber

Ethernet Technology

10 Gigabit Ethernet

Network Technology

10GBase-X

I/O Expansions

Number of Total Expansion Slots

12

Expansion Slot Type

SFP+

Number of SFP+ Slots

12

Network & Communication

Layer Supported

2

Networking Standards
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3x
  • IEEE 802.1Q
  • IEEE 802.1D
  • IEEE 802.3az

Management & Protocols

Manageable

Yes

Power Description

Input Voltage
  • 120 V AC
  • 230 V AC

Frequency
  • 50 Hz
  • 60 Hz

Power Source

Power Supply

Physical Characteristics

Compatible Rack Unit

1U

Form Factor

Rack-mountable

Height

1.7″

Width

8.3″

Depth

9.1″

Miscellaneous

Package Contents
  • Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch
  • 1 x Quick Installation Guide
  • 1 x Power Cord
  • 1 x RJ45 Console Cable
  • 1 x Rack Mount Kit

Application/Usage

Business
