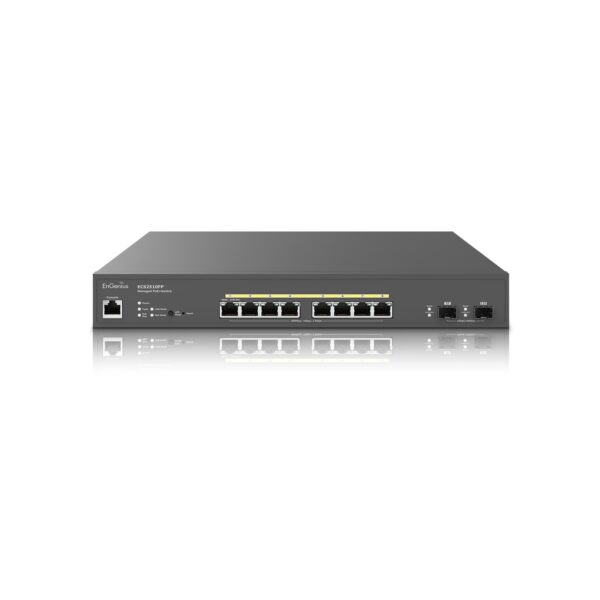

ECS2510FP

Cloud Managed 8-Port 240W PoE+ Multi-Gigabit 2.5 Gb Switch with 2 x SFP+ Uplink Ports



Product Highlights

The EnGenius cloud-managed ECS2510FP 8-port multi-gigabit (2.5G) layer 2+ PoE+ (802.3at/af) switch with 240W budget and 2 SFP+ (10G) uplink ports offering multiple management options and can easily be configured, monitored, and managed. The ECS2510FP is ideal for powering IP cameras, VoIP phones, and access points in large businesses.



• 8 10/100/1000/2500 Base-T GbE ports

• Full-featured Layer 2+ switching

• 802.3af/at PoE+ capable on all ports with a 240W PoE budget

• 120 Gbps switching capacity

• 2 10-gigabit dual-speed SFP+ (fiber) uplink ports

• Real-Time system metrics, deep-dive analytics, and remote configurations

• Quick-scan device register, remote monitoring, and troubleshooting

• Advanced view displays network topology with devices and relationships

• Hybrid switch supports multiple management options

• Security – Access control list/port security; 802.1X & RADIUS authentication

• IGMP & MLD snooping provides advanced multicast filtering & network efficiency

• 802.3ad link aggregation (LACP) supports traffic load balancing

• Spanning tree (STP), rapid spanning tree (RSTP) & multiple spanning tree (MSTP)

• Voice VLAN for fast, reliable deployment of VoIP services



Specifications :

Manufacturer	EnGenius Technologies, Inc
Manufacturer Part Number	ECS2510FP
Manufacturer Website Address	http://www.engeniustech.com
Brand Name	EnGenius
Product Series	ECS
Product Model	ECS2510FP
Product Name	ECS2510FP Ethernet Switch
Marketing Information	EnGenius cloud managed ECS2510FP 8-port multi-gigabit (2.5G) layer 2+ PoE+ (802.3at/af) switch with 240W budget and 2 SFP+ (10G) uplink ports offering multiple management options and can easily be configured, monitored, and managed. The ECS2510FP is ideal for powering IP cameras, VoIP phones, and access points in large businesses.
Packaged Quantity	1
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 2.5 Gigabit Ethernet PoE++ Network 2 x 10 Gigabit Ethernet Expansion Slot Network

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Ethernet Technology	2.5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	2.5GBase-T 10GBase-X

I/O Expansions

Number of Total Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.1x IEEE 802.3ad IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3x IEEE 802.1Q IEEE 802.1D IEEE 802.3az IEEE 802.3af IEEE 802.3at IEEE 802.3bt

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	240 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7″
Width	13″
Length	9.1″
Weight (Approximate)	5.73 lb

Miscellaneous

Package Contents	ECS2510FP Ethernet Switch 1 x Quick Installation Guide 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit
Application/Usage	Business
