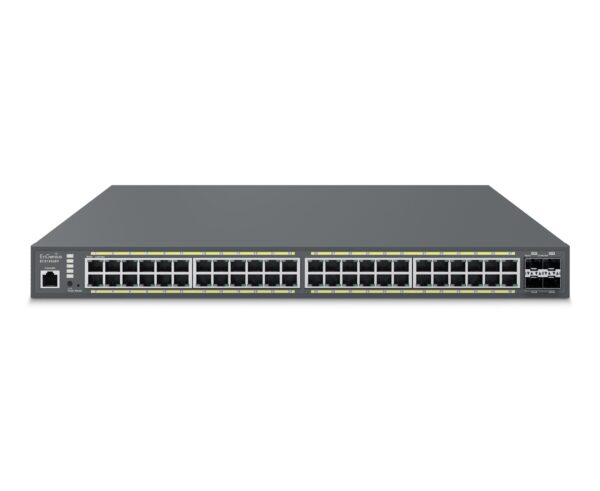

ECS1552FP

Cloud Managed 48-Port Gigabit 740W PoE+ Switch



Product Highlights

EnGenius Cloud ECS1552FP, a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.



• 48 10/100/1000 Base-T GbE Ports

• Full-Featured Layer 2+ Switching

• 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget

• 176 Gbps Switching capacity

• 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports



Available with Hardware v2 and Later

• PoE Extended Mode – Extend PoE Ethernet cable deploying range up to 250 meters

• PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera

• Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades



Specifications :

Manufacturer	EnGenius Technologies, Inc
Manufacturer Part Number	ECS1552FP
Manufacturer Website Address	http://www.engeniustech.com
Brand Name	EnGenius
Product Series	ECS
Product Model	ECS1552FP
Product Name	Cloud Managed 740W PoE 48Port Network Switch
Marketing Information	The ECS1552FP Cloud Managed 740W 48-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs. Managed by EnGenius Cloud Platform or EnSky On-premises (48) 10/100/1000 Mbps Gigabit Ethernet PoE Ports (4) 10 Gigabit SFP Plus Uplink Ports for Superior Network Performance Desktop Model Supports Full-Featured Layer 2 Switching 802.3af/at Available On All Ports with a Total PoE Budget of 740W
Packaged Quantity	1
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE+ 4 x 10 Gigabit Ethernet Uplink

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 10GBase-X

I/O Expansions

Number of Total Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported

2

Management & Protocols

Manageable

Yes

Power Description

Power Source	Power Supply
Power Consumption	745.61 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7″
Width	17.3″
Depth	10.2″
Length	17.3″
Weight (Approximate)	10.50 lb

Miscellaneous

Package Contents

Cloud Managed 740W PoE 48Port Network Switch 1 x Quick Installation Guide 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit
