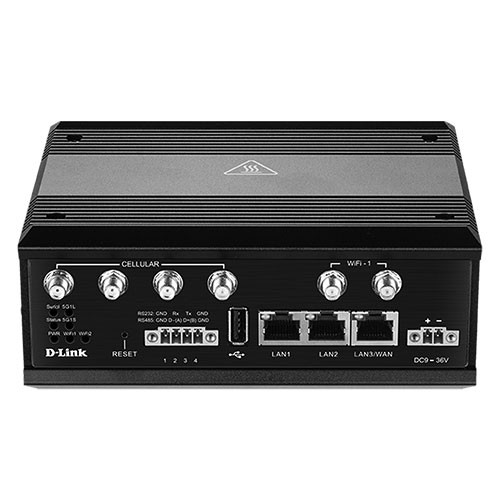

Device Interfaces

• 1 x 10/100/1000 Ethernet WAN/LAN Ports, 2 x 10/100/1000 Ethernet LAN port

LED

• Serial: Blue

   OFF: Serial function is disabled

   Fast Flashing: Serial port is working

• Status: Blue

   OFF: Host disconnected

   Fast Flashing: WAN Ethernet or LTE connection established, obtaining IP

• PWR: Blue

  OFF: Device is powered OFF or in standby mode

  Steady ON: Device is powered ON

  Flashing once per second: Device is at “Delay OFF” mode

  Fast Flashing: Firmware is upgrading or device is in recovery mode

• Wi-Fi: Blue

  OFF: 2.4 GHz/5 GHz Wi-Fi is disabled

  Steady ON: 2.4 GHz/5 GHz Wi-Fi is enabled

  Fast Flashing: Data is being transmitted/received via 2.4 GHz/5 GHz Wi-Fi

• 5G1L Cellular & 5G1S Cellular: Blue

  SIM-A Steady ON: SIM-A is inserted for 3G/4G/5G connection

  SIM-A OFF: SIM-A is not inserted or not in use

  SIM-B Steady ON: SIM-B is inserted for 3G/4G/5G connection

  SIM-B OFF: SIM-B is not inserted or not in use

  HIGH Steady ON: 3G/4G/5G signal strength is at high level

  LOW Steady ON: 3G/4G/5G signal strength is at low level

• WAN/LAN1 – 3: Green

  Steady ON: Ethernet LAN or WAN connection is established

  Flash: data packets are transferring

Power Supply

• DC 9V / 2.7A ~ 36V / 0.7A

Ethernet

• 1 x 10/100/1000 Ethernet WAN/LAN port

• 2 x 10/100/1000 Ethernet LAN ports

SMA Antenna

• 4 x Female type jack for 5G NR/LTE

• 2 x Male type jack for Wi-Fi

Communication Bus

• 1 x RS-232 (Tx/Rx)

• 1 x RS-485 (D+(B), D-(A))

5G NR

•  5G NR, Sub-6 GHz, 100 MHz (BW)

4G LTE

• LTE support up to Cat.20

Interface

• USB 3.0 miniPCIe

Dual SIM Slots

• 3V/1.8V 6-pin standard (3FF Micro SIM)

Standards

• IEEE 802.11 ac/n/g/b/a, 2.4 GHz/5 GHz

Wi-Fi Data Rates

• Up to 866 Mbps with 802.11ac clients

• Up to 300 Mbps with 802.11n clients

Power Input

•  DC 9V/2A – 36V/0.7A +/- 5%

Dimensions

• 62 x 125 x 160 mm (w/o mounting kit)

Weight

• 1.15 kg
