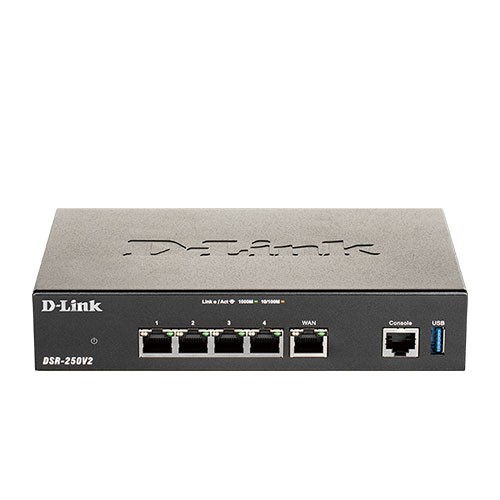

D-Link DSR-250V2

5-Gigabit Port VPN Router



The D-Link DSR-250v2 Series Unified Services Routers provide highly secure, multifunctional networking solutions to small and medium businesses users.

• Automatic failover to another link from available ISP when primary line is lost.

• Support 1 x GE WAN, 3 x GE LAN, 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.

• 900/200 Mbps firewall/VPN throughput, 50,000 Concurrent Sessions, and 50/20 IPsec/SSL VPN Tunnels.

• Advanced routing, VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client

• Value-added office utilities to reduce OpEx/CAPEX

• Traffic load balancing and Avoid complicated maintenance issues



Specifications :

Ethernet Interface • 1 x 10/100/1000 Mbps WAN port；3 x 10/100/1000 Mbps LAN ports；1 x 10/100/1000 Mbps configurable port

USB Port • 1 x USB 3.0

Console Port • RJ-45

Firewall Throughput • 950 Mbps

VPN Throughput (3DES) • 200 Mbps

Concurrent Sessions • 50,000

New Sessions (per second) • 2000

Firewall Policies • 300

Static/Dynamic IP • Yes

Static Route • Yes

Dynamic Route • RIP v1/v2, OSPF, OSPFv3

Authentication • Internal User Database, Radius, POP3, LDAP, AD, NT Domain

Application Control • Well-known Application Control (license required)

DHCP Server/Client • 1024 clients

DHCP Relay • Yes

IEEE 802.11q VLAN • Yes

Number of VLANs • 16

IP Multicast • IGMP Proxy, IGMP Snooping

IPv6 • Yes

Route Failover • Yes

VPN Tunnels • 75

IPsec Tunnel • 50

PPTP/L2TP Tunnels • 30

GRE • 20

OpenVPN Tunnels • 20

SSL Encryption Methods • RC4-128, 3DES, AES

Encryption Methods • DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL

Priority Bandwidth Control • Low/Medium/High

Web-based User Interface • Yes

Command Line • Yes

SNMP • v1, v2c, v3

Power Supply • External Power Supply Unit DC 12 V/1.5 A

Max Power Consumption • 8.603 W/ 14.4 W

Dimensions (L x W x H) • 190 x 120 x 38 mm (7.48 x 4.72 x 1.49 in)

Operation Temperature • 0 to 40 °C (32 to 104 °F)

Storage Temperature • 20 to 70 °C (-4 to 158 °F)

Operation Humidity • 5% to 95% non-condensing

MTBF • 1,230,157.85 hours
