CyberPower SM30KPMX

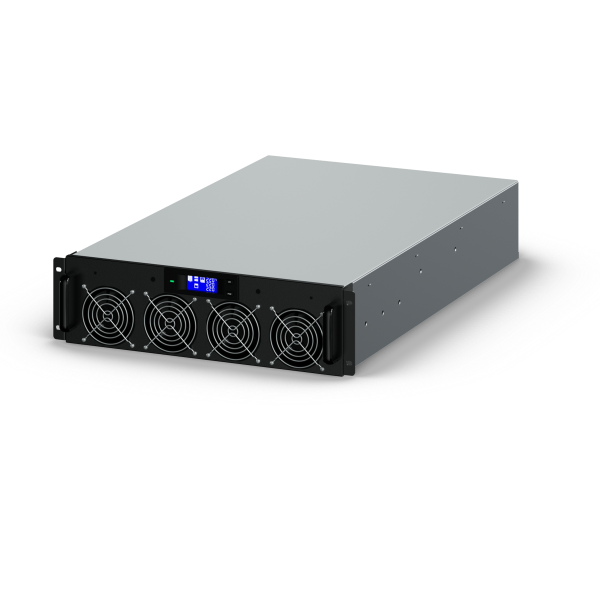

CyberPower SM30KPMX is a power module which can be installed into the UPS to provide vertical scalability and extended power capacity for datacenter UPS. Users can choose the number of power modules to install, and flexibly configure the power capacity based on their business needs.

The product can be installed without taking any extra footprint, saving valuable floor space. The plug-n-play function supports quick and immediate installation. Moreover, the product features hot-swappable capability, allowing users to safely replace battery module without interrupting connected loads, and ensuring seamless operation.



Features :

  • Three-phase Design

  • Pure Sine Wave Output

  • Hot-swappable Power Modules

  • Online (Double Conversion) UPS Topology

  • Flexible Power Scalability

  • Space-saving Design



Specifications :

General
Phase Three Phase
Form Factor Modular
UPS Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 98%
Normal Mode Efficiency (%) 95%
Battery Mode Efficiency (%) 95%
Active PFC Compatibility Yes
Parallel Expansion (Max. Units) 20
Input
Nominal Input Voltage (Vac) Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Input Voltage Range (Vac) Line to Line (L-L): 228 ~ 478 Vac
Line to Neutral (L-N): 132 ~ 276 Vac
Configurable Voltage Range (Vac) Line to Line (L-L): 380 ~ 435 Vac
Line to Neutral (L-N): 220 ~ 250 Vac
Input Frequency (Hz) 50 ± 3
60 ± 3
Input Frequency Range (Hz) 40 ~ 70
Rated Input Current (A) 41
Current Harmonic (%) 3%
Input Power Factor 0.99
Output
Capacity (VA) 30000
Capacity (Watts) 27000
On Battery Waveform Pure Sine Wave
Output Voltage Setting Configurable
Output Frequency Setting Configurable
Rated Output Voltage (Vac) Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Output Voltage Tolerance (%) 1%
Output Frequency (Hz ± %) 50 ± 0.1
60 ± 0.1
Power Factor 0.9
ECO Mode Voltage Tolerance ±10%
Overload Protection Internal Current Limiting, Fuse
Overload Protection (Line Mode) 105~110% Load for 60 min
110~125% Load for 10 min
125~150% Load for 1 min
>150% Load Immediately
Overload Protection (Battery Mode) 105~110% Load for 60 min
110~125% Load for 10 min
125~150% Load for 1 min
>150% Load Immediately
Overload Protection (Bypass Mode) 110~125% Load for 5 min
125~150% Load for 1 min
150~400% Load for 1 sec
>400% Load Immediately
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD＜1%
Harmonic Distortion (Non-linear Load) THD＜5.5%
Internal Bypass Automatic Bypass, Manual Bypass
Maintenance Bypass Yes
Typical Transfer Time (ms) 0
Battery
Recharge Power (%) Default 10% (Selectable from 1~20% x UPS Capacity)
Recharge Power Setting Configurable
Charger Voltage Tolerance (%) ≤1%
Smart Battery Management (SBM) Yes
Surge Protection & Filtering
EMI/RFI Filtration Yes
Management & Communications
LED Indicators Yes
Physical
Enclosure Construction Metal
Color Black
Ingress Protection IP20
Rackmount Ears Yes
Physical Size – Power Module
Dimensions (W×H×D) 460 × 134 × 790 mm
Weight 34 kg
625 × 985 × 965 mm
Dimensions (W×H×D) 625 × 985 × 965 mm
Weight 130 kg
Environmental
Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Operating Elevation (feet/meters) ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F) -40 ~ 158
Storage Temperature (°C) -40 ~ 70
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Audible Noise at 1.0M from Surface of Unit (dBA) 55
Certifications
Certifications CE, IEC62040-1, IEC62040-2
