CyberPower OLS6KERT5U UPS OLS RT 6kVA/6kW Pf1 5U

CyberPower OLS6KERT5U UPS OLS RT 6kVA/6kW Pf1 5U

฿97,450.00 (รวมภาษี)
฿91,074.77 (ไม่รวมภาษี)

รหัสสินค้า: OLS6KERT5U

มีสินค้าอยู่ 100

CyberPower OLS6KERT5U

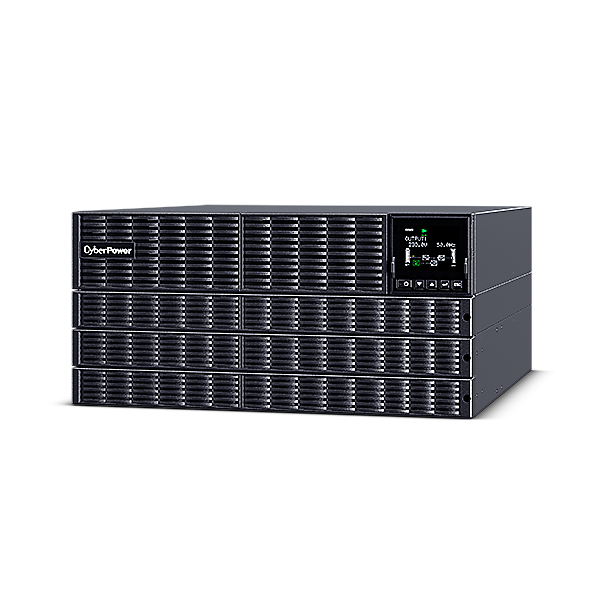

CyberPower OLS6KERT5U is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.

With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the UPS is equipped with Remote Cloud Card to support remote monitoring via a web portal and the mobile app. The tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.



Features :

  • Online (Double Conversion) UPS Topology

  • High Output Power Factor

  • Overload Protection

  • Maintenance Bypass Switch

  • Extended Battery Module Auto-detection

  • User-replaceable Batteries

  • Tiltable LCD Panel

  • Relay-type Dry Contact

  • SNMP/HTTP Remote Management Capability (Optional)

  • Rack/Tower Convertible Configurations

  • ECO Mode

  • Pure Sine Wave Output

  • Zero Transfer Time

  • Extended Battery Module (EBM)

  • Adjustable Charging Current

  • Color LCD Panel

  • Emergency Power Off (EPO) Port

  • PowerPanel Management Software

  • Built-in Remote Cloud Card by Ethernet



Specifications :

General Phase Single Phase
Form Factor Rackmount, Tower
UPS Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 98%
Active PFC Compatibility Yes
Parallel Expansion (Max. Units) 4
Input Generator Compatibility Yes
Nominal Input Voltage (Vac) 230
Input Voltage Range (Vac) 110 ~ 300
Adjustable Voltage Range (Vac) 0~50% Load for 110 ~ 144 Vac
0~75% Load for 145 ~ 179 Vac
0~100% Load for 180 ~ 300 Vac
Input Frequency (Hz) 50
60
Input Frequency Detection Auto-sensing
Rated Input Current (A) 30
Input Power Factor 0.99
Input Connector Type Hardwire Terminal Block
Output Capacity (VA) 6000
Capacity (Watts) 6000
On Battery Waveform Pure Sine Wave
On Battery Voltage(s) (Vac) 200 ± 1 %
208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Output Voltage Setting Configurable
On Battery Frequency (Hz) 50 ± 0.5%
60 ± 0.5%
Output Frequency Setting Configurable
Power Factor 1
ECO Mode Voltage Tolerance ± 10 %
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode) 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode) 110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately
Crest Factor 3 : 1
Harmonic Distortion (Linear Load) THD＜1.5%
Harmonic Distortion (Non-linear Load) THD＜2%
Internal Bypass Automatic Bypass, Manual Bypass
Maintenance Bypass Yes
Outlet(s) – Total 9
Outlet Type Hardwire Terminal Block x 1
IEC C13 x 4
IEC C19 x 4
Typical Transfer Time (ms) 0
Battery Runtime at Half Load (min) 17.7
Runtime at Full Load (min) 5.6
Typical Recharge Time (Hours) 4
Maximum Charging Current (A) 4
Adjustable Charging Current (A) 1 ~ 4
Start On Battery Yes
Smart Battery Management (SBM) Yes
User-replaceable Yes
Hot-swappable Yes – Qualified Personnel Only
Battery Type Sealed Lead-acid
Compatible Extended Battery Module (EBM) BPS240V7ART3U
Extended Battery Module Auto-detection Yes
Max. EBM Quantity (pcs) 10
Surge Protection & Filtering Surge Suppression (Joules) 1335
EMI/RFI Filtration Yes
Management & Communications LCD Panel Yes
LCD Types Color LCD
LCD Orientation Rotatable LCD – Manual
Tiltable LCD Panel 15°
LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators Power On
HID Compliant USB Port(s) 1
Serial Port RS232
Dry Contact (with Relay) Yes
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable (pcs) Power Cord x4, USB Cable x1, Parallel Cable x1
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Remote Cloud Card Yes – Built-in Remote Cloud Card by Ethernet
PowerPanel Cloud Service Yes – 90 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service
Physical Enclosure Construction Metal
Color Black
Rackmount Rail Yes
Rackmount Ears Yes
Physical Size – UPS Module Dimensions (WxHxD) (mm.) 433 x 213.5 x 661
Weight (kg.) 69
Installed Rack Height (U) 5
Shipping Dimensions Dimensions (WxHxD) (mm.) 575 x 489 x 890
Weight (kg.) 86.8
Environmental Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Operating Elevation (feet/meters) 0-4,921 feet (0-1,500 meters)
Storage Temperature (°F) 5 ~ 113
Storage Temperature (°C) -15 ~ 45
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Storage Elevation (feet/meters) 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation (BTU/hr) 1777
Audible Noise at 1.0M from Surface of Unit (dBA) 62
Certifications Certifications CE
RoHS Yes
Special Features Rack/Tower Convertible Configurations Yes
