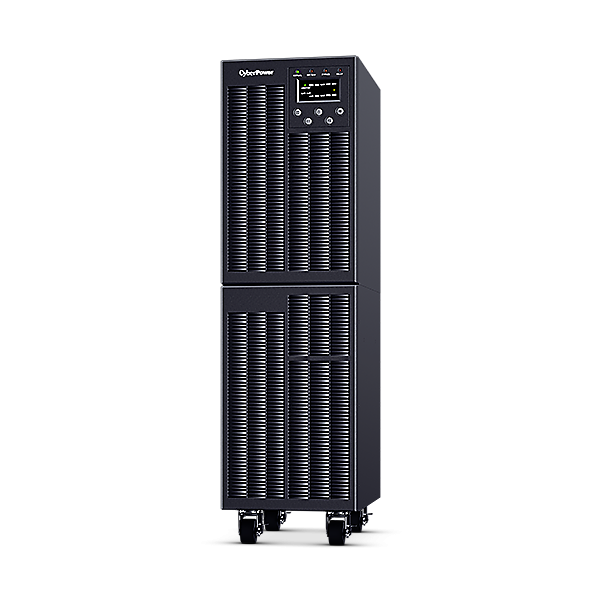

CyberPower OLS3S10KEC 10KVA/8KW 3in/1out with BATTERY

CyberPower OLS3S10KEC 10KVA/8KW 3in/1out with BATTERY

฿117,110.00 (รวมภาษี)
฿109,448.60 (ไม่รวมภาษี)

รหัสสินค้า: OLS3S10KEC

มีสินค้าอยู่ 100

CyberPower OLS3S10KEC



CyberPower OLS3S10KEC guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. It is compatible with generators to prolong power continuity, and maintenance bypass switch to provide quick and safe maintenance without having to shut down UPS and connected equipment. The product can be connected to Emergency Power Off (EPO) switch, allowing users to shut off UPS immediately during emergency.

To extend battery lifetime, the built-in Smart Battery Management (SBM) enhances battery charging process and achieve a lower total cost of ownership. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.



Features :

  • Online (Double Conversion) UPS Topology

  • Pure Sine Wave Output

  • Zero Transfer Time

  • Battery Cold Start

  • EMI and RFI Filtration

  • Extended Battery Module (EBM)

  • SNMP/HTTP Remote Management Capability (Optional)

  • ECO Mode

  • Generator Compatible

  • Smart Battery Management (SBM)

  • Surge and Spike Protection

  • LED Status Indicator

  • Emergency Power Off (EPO) Port

  • PowerPanel Management Software



Specifications :

General Form Factor Tower
UPS Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 96%
Normal Mode Efficiency (%) 92%
Battery Mode Efficiency (%) 90%
Active PFC Compatibility Yes
Input Generator Compatibility Yes
Nominal Input Voltage (Vac) 230
Input Voltage Range (Vac) 110 ~ 276
Nominal Input Voltage (Vac) Line to Neutral (L-N): 220, 230, 240 Vac, Line to Line (L-L): 380, 400, 415 Vac
Input Voltage Range (Vac) Line to Line (L-L): 304 ~ 456 Vac, Line to Neutral (L-N): 176 ~ 264 Vac
Configurable Voltage Range (Vac) Line to Line (L-L): 190 ~ 478 Vac, Line to Neutral (L-N): 110 ~ 276 Vac
Input Frequency (Hz) 60 ± 6 / 50 ± 5
Input Frequency Range (Hz) 45 ~ 66
Rated Input Current (A) 13
Current Harmonic (%) 10%
Input Power Factor 0.8
Backfeed Protection Yes
Input Connector Type Hardwire Terminal Block
Output Capacity (VA) 10000
Capacity (Watts) 8000
On Battery Waveform Pure Sine Wave
Output Voltage Setting Configurable
Output Frequency Setting Configurable
Power Factor 0.8
ECO Mode Voltage Tolerance ± 10 %
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 100~110% Load for 5 min, 110~130% Load for 1 min, 130~150% Load for 10 sec, >150% Load for 2 sec
Overload Protection (Battery Mode) 100~110% Load for 5 min, 110~130% Load for 1 min, 130~150% Load for 10 sec, >150% Load for 2 sec
Overload Protection (Bypass Mode) Circuit Breaker
Crest Factor 3 : 1
Harmonic Distortion (Linear Load) THD＜2%
Harmonic Distortion (Non-linear Load) THD＜5%
Internal Bypass Automatic Bypass
Outlet(s) – Total 1
Outlet Type Hardwire Terminal Block x 1
Typical Transfer Time (ms) 0
Battery Runtime at Half Load (min) 10
Runtime at Full Load (min) 4
Runtime at Full Load (External Battery) 10 mins with 2 EBM(s)
Typical Recharge Time (Hours) 7
Maximum Charging Current (A) 1
Recharge Power (%) Default 2.6% (Selectable from 0~5% x UPS Capacity)
Charger Voltage Tolerance (%) ≤ 1 %
Start On Battery Yes
Smart Battery Management (SBM) Yes
User-replaceable No
Battery Type Sealed Lead-acid
Compatible Extended Battery Module (EBM) BPSE192V60A
Max. EBM Quantity (pcs) 15
Surge Protection & Filtering Surge Suppression (Joules) 445
EMI/RFI Filtration Yes
Management & Communications LED Indicators Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault
HID Compliant USB Port(s) 1
Serial Port RS232
Dry Contact (with Relay) Optional
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable (pcs) USB Cable x1
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Physical Enclosure Construction Metal
Color Black
Dimensions (WxHxD) (in.) 7.71 x 27.64 x 16.22
Dimensions (WxHxD) (mm.) 196 x 702 x 412
Weight (lbs.) 119
Weight (kg.) 65
Shipping Dimensions (WxHxD) (in.) 13.78 x 36.89 x 22.28
Shipping Dimensions (WxHxD) (mm.) 350 x 937 x 566
Shipping Weight (lbs.) 133.8
Shipping Weight (kg.) 68
Environmental Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 90
Operating Elevation (feet/meters) ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F) 5 ~ 113
Storage Temperature (°C) -15 ~ 45
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Storage Elevation (feet/meters) 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation (BTU/hr) 1425
Audible Noise at 1.5M from Surface of Unit (dBA) 60
Certifications Certifications CE
RoHS Yes
