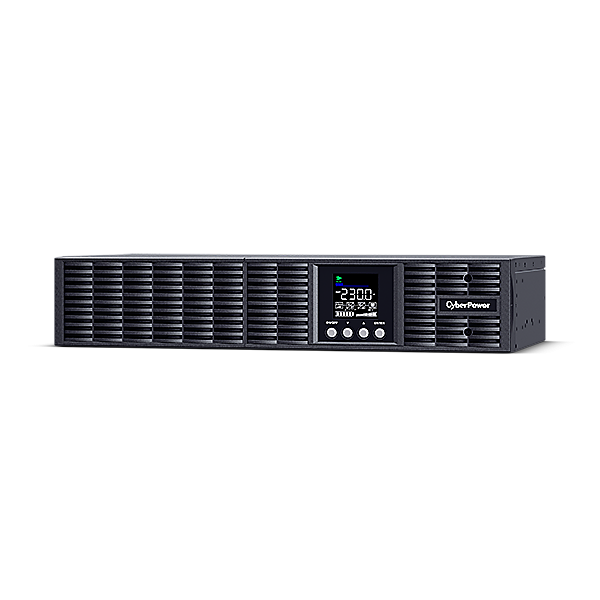

CyberPower OLS1000ERT2UA



CyberPower OLS1000ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

The UPS features color LCD panel for users to monitor power system and configure settings easily. This model can be used with compatible Extended Battery Modules (EBM) to prolong system runtime during power interruption. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users. The product also supports power management software to perform real-time monitoring and remote management.



Features :

  • Online (Double Conversion) UPS Topology

  • Generator Compatible

  • Zero Transfer Time

  • Extended Battery Module Auto-detection

  • Critical/Non-critical Load Outlets

  • Phone/Fax/Modem/DSL/Network Protection

  • Variable Speed Fans

  • PowerPanel Management Software

  • Rack/Tower Convertible Configurations

  • ECO Mode

  • Overload Protection

  • Smart Battery Management (SBM)

  • Surge and Spike Protection

  • EMI and RFI Filtration

  • Color LCD Panel

  • Emergency Power Off (EPO) Port

  • SNMP/HTTP Remote Management Capability (Optional)



Specifications :

OLS1000ERT2UA
General
Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 95%
Active PFC Compatibility Yes
Input
Generator Compatibility Yes
Nominal Input Voltage (Vac) 230 ± 10%
Input Voltage Range (Vac) 160 – 300
Input Frequency (Hz) 50 ± 10, 60 ± 10
Input Frequency Detection Auto-sensing
Rated Input Current (A) 4.5
Input Power Factor 0.99
Input Connector Type IEC C14
Output
Capacity (VA) 1000
Capacity (Watts) 900
On Battery Waveform Pure Sine Wave
On Battery Voltage(s) (Vac) 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1%
Output Voltage Setting Configurable
On Battery Frequency (Hz) 50 ± 0.5%, 60 ± 0.5%
Output Frequency Setting Configurable
Power Factor 0.9
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 105~110% Load for 10 min, 110~130% Load for 1 min, >130% Load for 3 sec
Overload Protection (Battery Mode) 105~110% Load for 1 min, 110~130% Load for 30 sec, >130% Load for 3 sec
Overload Protection (Bypass Mode) 105~110% Load for 30 min, 110~130% Load for 10 min, >130% Load for 1 min
Harmonic Distortion (Linear Load) THD<3%
Harmonic Distortion (Non-linear Load) THD<6%
Outlets – Total 8
Outlet Type IEC C13 x 8
Outlet(s) – Battery & Surge Protected 8
Outlet(s) – Critical Load (CL) 4
Outlet(s) – Non-Critical Load (NCL) 4
Typical Transfer Time (ms) 0
Battery
Runtime at Half Load (min) 12.1
Runtime at Full Load (min) 3
Typical Recharge Time (Hours) 4
Smart Battery Management (SBM) Yes
Hot-swappable Yes – Qualified Personnel Only
User-raplacebale Yes
Battery Type Sealed Lead-acid
Replacement Battery Pack (RBP)
Replacement Battery Pack (RBP) Quantity (pcs) –
Optional Extended Battery Module (EBM) BPSE24V40ART2U
Max. EBM Quantity (pcs) 3
Surge Protection & Filtering
Surge Energy Dissipation (Joules) 600
EMI/RFI Filtration Yes
Phone/Network Protection RJ11/RJ45 1-in, 1-out
Management & Communications
LCD Panel Yes
LCD Types Color LCD
LCD Panel Operation Rotatable LCD – Manual
HID Compliant USB Port(s) 1
Serial Port RS232
Dry Contact (with Relay) Yes
Emergency Power Off (EPO) Port Yes
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
PowerPanel Cloud Service Yes – 90 Days Free Trial with PowerPanel Personal/Business
Physical
Form Factor Rackmount, Tower
Physical Size – UPS Module
Dimensions (WxHxD) (mm) 438 x 88 x 310
Weight (kg) 11.3
Weight (Rack Height (U)) 2U
Environmental
Operating Temperature (°C) 0 – 40
Operating Relative Humidity (Non-Condensing) (%) 0 – 95
Online Thermal Dissipation (BTU/hr) 375.1
Certifications
Certifications CE, EAC
RoHS Yes
