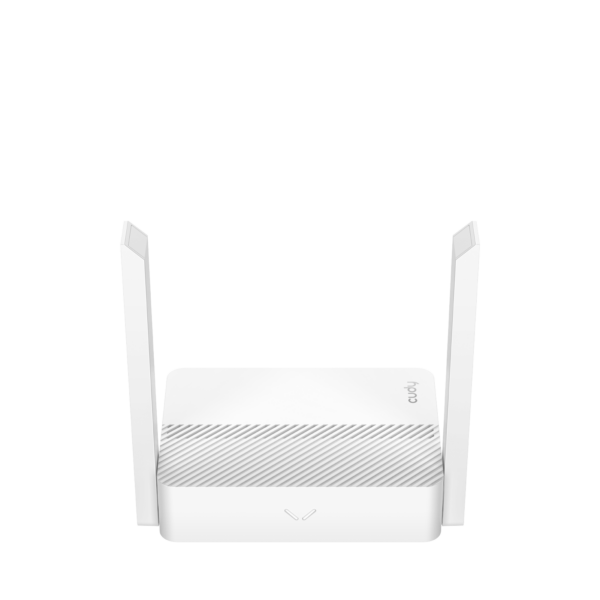

Cudy LT300 4G N300 Wi-Fi Router

Cudy LT300 4G N300 Wi-Fi Router

฿1,550.00 (รวมภาษี)
฿1,448.60 (ไม่รวมภาษี)

รหัสสินค้า: LT300

มีสินค้าอยู่ 200

Cudy LT300

4G N300 Wi-Fi Router



Highlights

A 4G WiFi router with one nano SIM slot and two Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

  • 4G Cat. 4 with Max 150 Mbps DL

  • 300 Mbps Wi-Fi

  • 1× Nano SIM Slot

  • VPN Server and Client

  • Cudy App, Cloud Control



Specifications :

Model Version

LT300 2.0

CPU

CPU Details

580 MHZ Single-Core, MIPS24KEC

Memory/Storage

Flash/ROM

8 MB (64 Mbit ) NOR

DDR/RAM

64 MB (512 Mbit) DDR2

Cellular

Cellular Standards

4G Cat. 4

Cellular Antennas

2× Fixed

SIM Options

1× Nano SIM Slot

Available Versions

EU, CN

EU Version Cellular

Suitable Region

Europe, Middle East, Africa

Max DL Speed

150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)

Max UL Speed

50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)

Advanced

DL 2×2 MIMO

Cellular Bands

LTE-FDD: B1/3/5/7/8/20/28

LTE-TDD: B38/40/41

WCDMA: B1/5/8

CN Version Cellular

Suitable Region

China, India

Max DL Speed

150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)

Max UL Speed

50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)

Advanced

DL 2×2 MIMO

CN Cellular Bands

LTE-FDD: B1/3/5/8

LTE-TDD:

B34/38/39/40/41

WCDMA: B1/5/8

GSM: B3/8

Wireless

2.4 GHz Wi-Fi Speed

300 Mbps

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Internal

2.4 GHz Antenna Gain Max

2.83 dBi

FEM or PA/LNA

2.4 GHz: 2× Internal

Range Performance

Max: 100 m (328 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance

One wooden walls with thickness < 10 cm (4”)

One concrete wall with thickness < 10 cm (4”)

Interfaces

Physical Buttons

  • WPS Button

  • Reset Button

10/100 Mbps RJ45 Ports

2

Ethernet Notes

1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports

LED

  • System

  • Cellular Signal Strength

Power Input

DC Jack

Power

Power Methods

DC

DC

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W)

8W

Idle Power Consumption (W)

3W

Reliability

EMS

ESD: Contact: 4kV; Air: 8kV

Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Certifications

FCC, CE

Mechanical

Dimension

118×80×27.5 mm

4.65×3.15×1.08 inches

Product Weight

172.2 g (6.07 oz.)

Installation

Desktop

Package Content

  • LT300

  • Power Adapter

  • Ethernet Cable

  • Installation Guide
