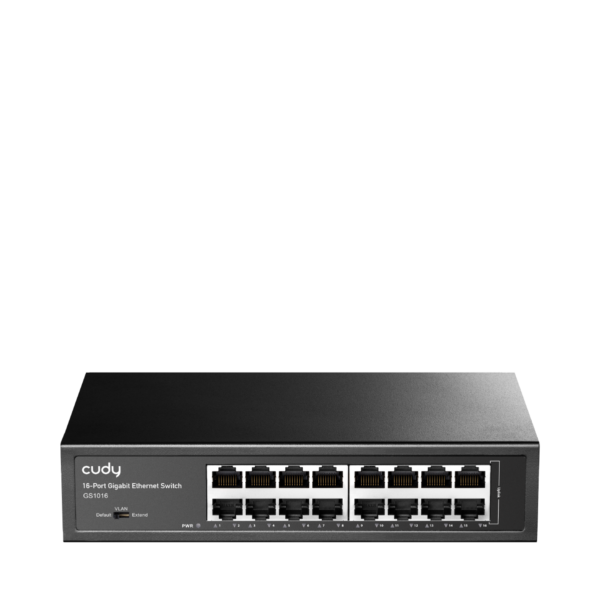

Cudy GS1016 16-Port Gigabit Unmanaged Switch

Cudy GS1016 16-Port Gigabit Unmanaged Switch

฿2,080.00 (รวมภาษี)
฿1,943.93 (ไม่รวมภาษี)

รหัสสินค้า: GS1016

มีสินค้าอยู่ 200

Cudy GS1016

16-Port Gigabit Unmanaged Switch



Highlights :

A 16-GbE switch with VLAN/Extend functions and a fanless cooling system.

  • EN8853D, EN8808Q

  • 16× GbE

  • Fanless Cooling

  • Default/VLAN/Extend DIP Switch



Specifications :

Model Version

GS1016 3.0

Interfaces

Gigabit RJ45 Ports

16

Shielded RJ45 Port

True

Extend Mode Ports

#1~#14

VLAN Mode Ports

#1~#14

LED

  • Power

  • Speed/Link/ACT of Each Ethernet Port

Power Input

AC Inlet

Physical Buttons

VLAN/Default/Extend DIP Switch

Performance

Copper Speed and Distance

  • Cat. 3 or higher cable: 100 meters at 10 Mbps

  • Cat. 5 or higher cable: 100 meters at 100 Mbps

  • Cat. 5e or higher cable: 100 meters at Gigabit

  • Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note

250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

MAC Address Table

8192

Max Switching Capacity

32 Gbps

Max Forwarding Rate

23.808 Mpps

Jumbo Frame

15 KB

Packet Buffer

4 Mbit

Power

Basic Power Saving

True

Power Methods

AC

AC

90-260V~, 50/60Hz

Max Power Consumption

7.8W

Idle Power Consumption

4.5W

Switching

802.3 Protocols

  • 802.3x Flow Control

  • 802.3i 10BASE-T

  • 802.3u 100BASE-TX

  • 802.3ab 1000BASE-T

802.1 Protocols

802.1p: LAN Layer 2 QoS/CoS

L2 Features

  • IGMP Snooping

  • Loop Prevention

  • Loop Detection

  • DSCP QoS

  • 802.1p QoS

Reliability

Grounding Methods

  • Three-Prong Plug

  • Grounding Point

EMS

IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV

IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV

Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Mechanical

Dimension

200×118×44 mm

7.87×4.65×1.73 inches

Product Weight

619 g (21.83 oz.)

Casing Material

Metal

Installation

  • Desktop

  • Rackmount via Brackets

Package Content

  • GS1016

  • Power Cord

  • Installation Guide

  • Mounting Kit
