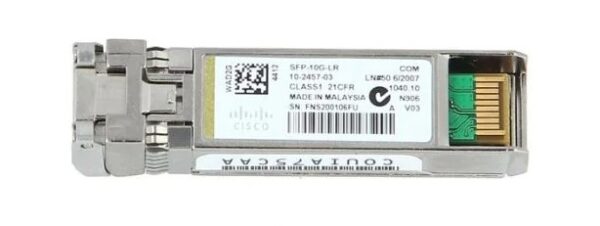

SFP-10G-LR

The Cisco SFP-10G-LR transceiver is a high-performance module designed for enterprise networks, providing reliable and seamless 10 Gigabit Ethernet connectivity. This Cisco transceiver supports the 10GBASE-LR standard, making it an ideal choice for long-range data transfer over single-mode fiber. The SFP-10G-LR offers robust performance with compatibility across a range of Cisco networking devices, ensuring flexible and efficient integration into existing infrastructure. With its reliable design and adherence to industry standards, the Cisco SFP-10G-LR meets the demanding needs of modern network applications, delivering low latency, high-speed data transmission, and minimal power consumption.

Specifications :

• Model : SFP-10G-LR

• Form Factor : SFP+

• Wavelength : 1310nm

• Connector : Duplex LC

• Transmitter Type : DFB

• TX Power : -8.2~0.5dBm

• Power Budget : 6.2dB

• Power Consumption : ≤1W

• Core Size : 9/125 um

• Commercial Temperature : 0 to 70°C (32 to 158°F)

• Vendor Name : Cisco

• Max Data Rate : 10.3125Gbps

• Max Cable Distance : 10km

• Media : SMF

• Receiver Type : PIN

• Receiver Sensitivity : <-14.4dBm

• Overload : 0.5dBm

• Extinction Ratio : >3.5dB

• Modulation : NRZ

• Protocols : IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
