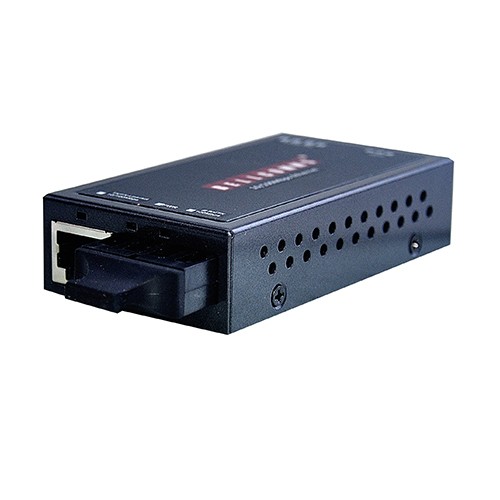

CTS-SC0240-LFP

1-PORT RJ45 100M TO 1-PORT SC-DUPLEX 155M SM 1310NM, LFP, 40KM(OS2)/2KM(OM2), MINI

BELLCOMMS media converters comply with IEE802.3 and IEEE802.3U Fast Ethernet standard. It supports two types of media for network connection such as 10/100Base‐Tx to 100Base-Fx and connects these two types of segments to operate smoothly. Supports a variety of fiber optic, including multimode and singlemode,and single-mode single fiber(WDM) transmission.Extend the transimission distance from 2km to 100km.

BELLCOMMS’s CSM-MCC0018-LFP(Chassis) can contains max 18 pcs Mini series mini-media converters.

Features :

• Complies with IEEE802.3 and IEEE802.3u standards

• 10/100Mbps and full/half duplex

• Nway Auto Negotiation

• MDI/MDI‐X Auto Negotiation

• Compact size 85.1mmD x 45.7mmW x 21.1mmH

• 3 LED lamps for Tx/Fx/Power indicator

• Dip switch for LFP,Jumbo frame setting etc

• Buzzer/LED for Fx-link status showing fuction optioned

• Jumbo frame 9k is available

• High density on 19” 18 slot rack-mount chassis

• Working wavelengths 850/1310/1550/1490 etc

• Supports multimode or singlemode fiber

• Supports singlemode singlefiber (WDM)

• Supports SC,ST or FC optic-connetor

• Supports distance from MM-2km to SM-120km

• Overload Current Protection

• Reverse Polarity Protection

• low-delay time pure data transmission

• Auto-ranging AC or DC power supply

• Class1 laser product complies with EN60825‐1

• CE,FCC,RoHS available
