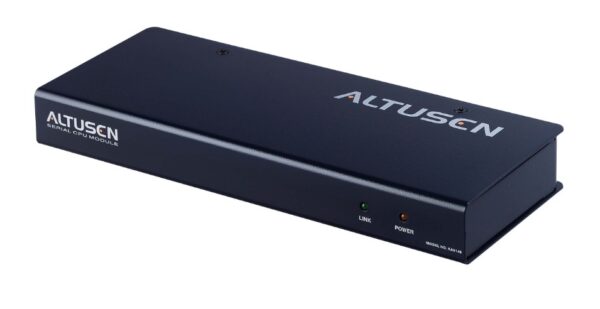

Aten KA9140

Serial KVM Adapter



The Altusen serial CPU adapters connect KVM cables to the serial ports of the servers. Those adapters are light and in small form factor, fit perfectly into most of the rack-mount or desktop servers.



Features :

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances.

  • Hot pluggable – add or remove computers without having to power down the switch.

  • Support VT-100.

  • Lifetime firmware upgrades.

  • Built in ASIC for greater reliability and compatibility.

  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial).



Diagram




Specifications :

Connectors

Console Ports

1 x RJ-45 Female

1 x Min Din Female

1 x HDB-15 Female

1 x Earphone-Jack-4 Female

Computer

1 x DB-9 Female

LEDs

Power

1 (Orange)

Link

1 (Green)

Switches

1 x 2 way slide switch

Power Consumption

DC5V:1.60W:10BTU/h

Note:

● The measurement in Watts indicates the typical power consumption of the device with no external loading.

● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature

0-50˚C

Storage Temperature

-20-60˚C

Humidity

0-80% RH, NC

Physical Properties

Housing

Metal

Weight

0.50 kg ( 1.1 lb )

Dimensions (L x W x H)

20.00 x 8.15 x 2.50 cm

(7.87 x 3.21 x 0.98 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
