Aten CL1000N

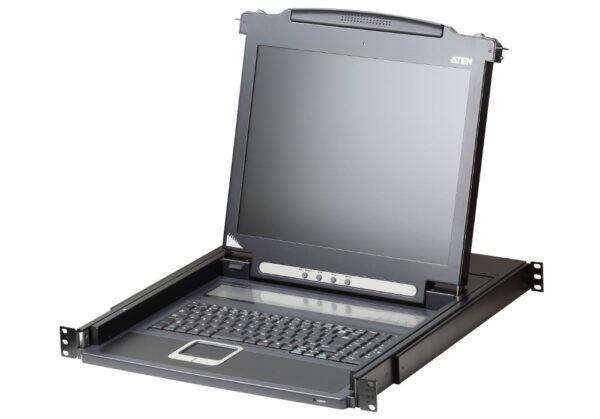

19″ LCD Console Slideaway Rack monitor



The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17″ or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

CL1000M: 17″ LCD

CL1000N: 19″ LCD



Features :

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

• Integrated KVM console with 17″ or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*

• LCD module rotates up to 120 degrees for a more comfortable viewing angle

• Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack

• Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables or converters1

• Internal power supply

• Adjustable depth to fit within a rack

• High video resolution:

          • Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen

          • Supports DDC, DDC2, DDC2B

          • DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor

• Optional rack mount kits available including easy installation options2

Note:

1. For more information, refer to Compatible Cables below.

2. Contact your ATEN dealer for product information.

* Compatible rack mounting kit:

CL1000M: 2X-010G, 2K-0003, 2K-0004

CL1000N: 2X-023G, 2K-0003, 2K-0004



Diagram



Specification :

Function	CL1000N
Computer Connections
Direct	1
Connectors
KVM Ports	1 x SPHD Female (Yellow)
Power	1 x IEC 60320/C14
Switches
Reset	N/A
Power	N/A
LCD Control	4 x Pushbutton
LCD Power	1 x LED Pushbutton
LEDs
Power	1 x KVM Console (Dark Green) 1 x LCD (Orange)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED Illumination Light	1 x LED Illumination Light
Panel Spec
LCD Module	19″ TFT-LCD
Resolution	1280 x 1024 @ 75 Hz
Response time	5 ms
Viewing Angle	170° (H), 160° (V)
Pixel Pitch	0.294 mm x 0.294 mm
Support Color	16.7M colors
Contrast Ratio	1000:1
Luminance	250 cd/m²
Video
Input Video Resolution	up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / Mouse	PS/2, USB(via 2L-520xUP cables)
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1A
Power Consumption	AC110V:29.2W:137BTU/h AC220V:29.3W:137BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-50˚C
Storage Temperature	-20-60˚C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal+Plastic
Rail Type	Single Rail
Weight	11.06 kg ( 24.36 lb )
Dimensions (L x W x H)	48.30 x 58.52 x 4.40 cm (19.02 x 23.04 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
