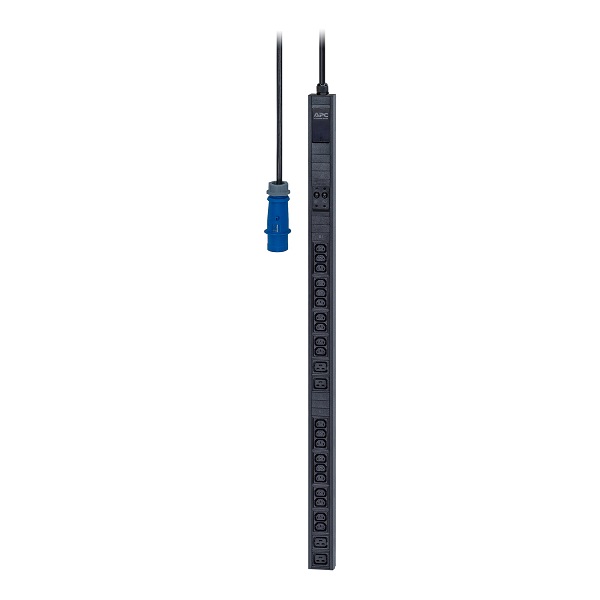

APC EPDU1132B Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

฿10,849.80 (รวมภาษี)

฿10,140.00 (ไม่รวมภาษี)

รหัสสินค้า: EPDU1132B

มีสินค้าอยู่ 100

Product successfully added to the Quote List

EPDU1132B

Name: APC EPDU1132B Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Brand: APC
SKU: EPDU1132B
Availability: InStock

APC Easy Rack PDU, Basic, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Basic Rack PDU EPDU1132B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1132B has IEC 309 32A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Specifications :

Overview
———
Lead time: Usually in Stock

—-
Main
—–
Name: EPDU1132B
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 117.5 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 3.58 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 32 A
Load capacity: 7360 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 20 IEC 60320 C13, 4 IEC 60320 C19

————
Environment
————
product certifications: CE, TÜV
Ambient air temperature for operation: 0…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…9144.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 132 cm
Package 1 Width: 16 cm
Package 1 Length: 11 cm
Package 1 Weight: 4.351 kg
