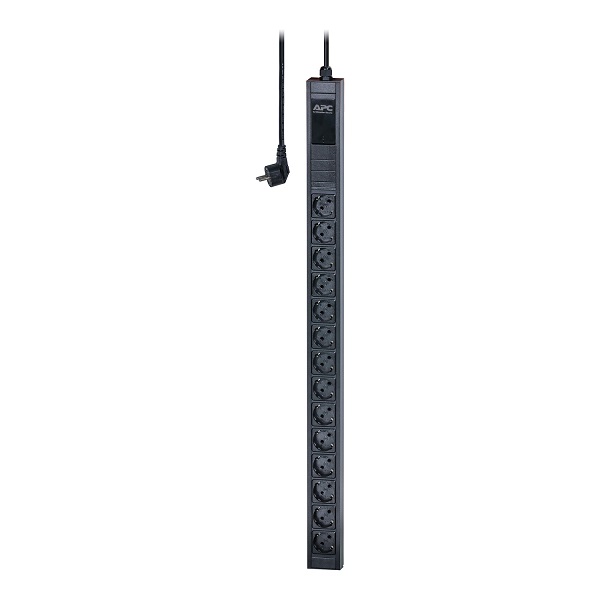

EPDU1116B-SCH

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 14 x SCHUKO outlets, IEC60884 SCHUKO inlet

APC Easy Basic Rack PDU EPDU1116B-SCH is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B-SCH has IEC60884 SCHUKO inlet and 14 x SCHUKO type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 90.2 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 1.94 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: Schuko CEE 7 / EU1-16P
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 14Schuko CEE 7

————
Environment
————
product certifications: CE, TÜV
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 132 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 2.84 kg
