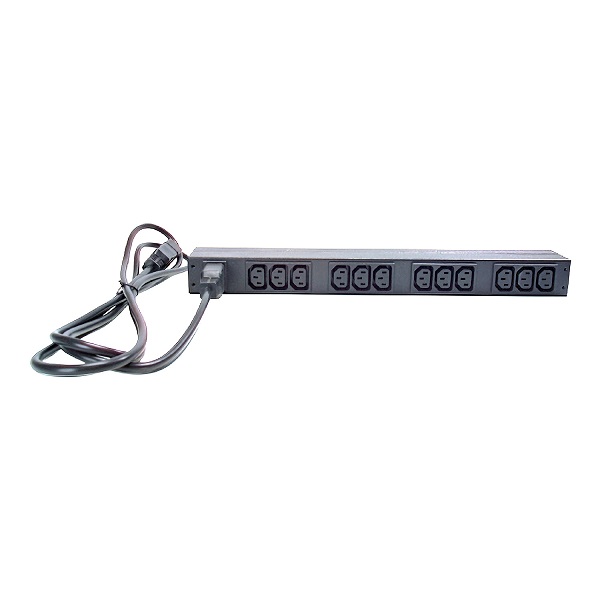

APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
  1. APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
  2. APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

APC AP9565 NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord

฿8,206.90 (รวมภาษี)
฿7,670.00 (ไม่รวมภาษี)

รหัสสินค้า: AP9565

มีสินค้าอยู่ 100

AP9565

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord



No matter your requirements, APC by Schneider Electric has one of the widest PDU selections around the globe with an array of power connections, voltages, amperages, and cord lengths. And with over 75% of IT managers choosing APC because of their durability, reliability, and trust, you can rely on our products to provide certainty in a connected world. It provides (12) IEC 60320 C13 outlets to supply power to rack equipment. Acceptable input voltages are 200-230 volts, and power output is 208-230 volts.   Power is supplied to the PDU through a IEC 320 C20 plug with a 2.5 meter (8 foot) cord. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. Mounting is easy and does not require additional tools in APC NetShelter Enclosures and most third party racks.



Specifications :

Overview
———
Presentation: Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Lead time: Usually in Stock
—–
Main
—–
Name: AP9565
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 2.5 m
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 4.4 cm
Width: 44.7 cm
Output Voltage: 208 V, 230 V
Depth: 5.7 cm
Net weight: 2.05 kg
mounting location: Front, Rear
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 1U
mounting position: Horizontal
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 12 IEC 60320 C13
————
Environment
————
product certifications: cUL listed, CE, Queensland Australia, UL listed, VDE
Standards: UL 60950
Ambient air temperature for operation: 0…45 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7 cm
Package 1 Width: 46.4 cm
Package 1 Length: 22.9 cm
Package 1 Weight: 3.632 kg



datasheet-icon
