AP8858EU3

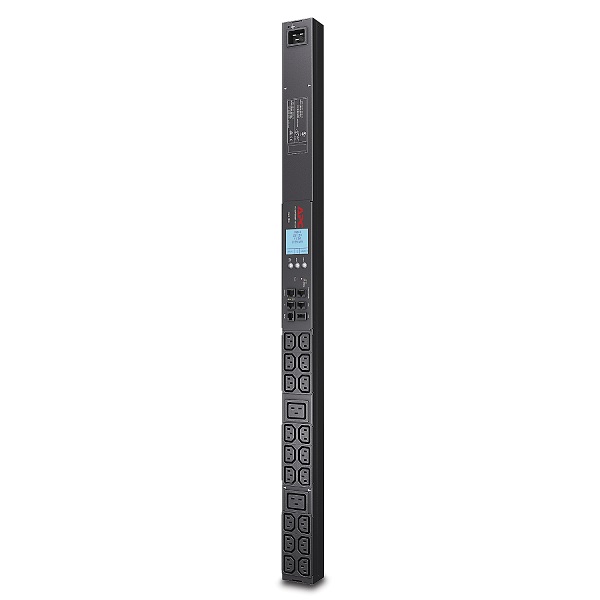

APC NetShelter Metered Rack PDU, 0U, 1PH, 3.7kW 230V 16A, x18 C13 and x2 C19 outlets, IEC 309 cord

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications :

Overview
———
Presentation: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Lead time: Usually in Stock
—–
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Metered
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Locking input power cord, Rack mounting brackets, Serial configuration cable, Safety guide
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 90.2 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 4.4 cm
Net weight: 2.93 kg
mounting location: Side
Mounting preference: No preference

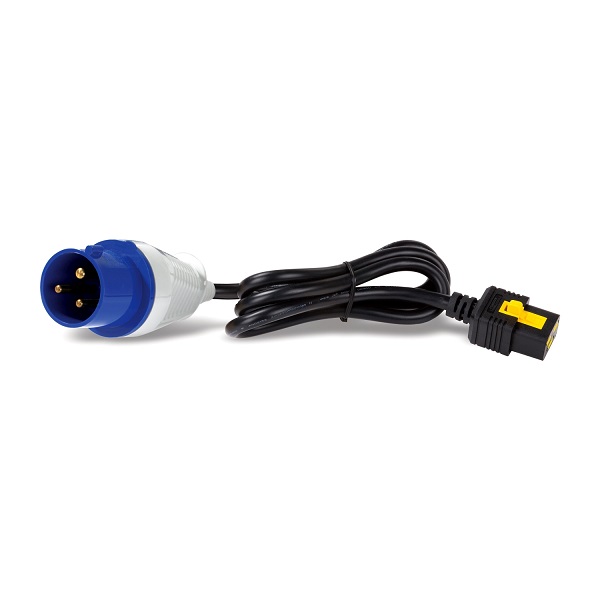

Input Plug Type: IEC 60309 16 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Permissible voltage: 100…240 V
Max line current: 16 A
Input current limits: 16 A
Load capacity: 3700 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 18 IEC 60320 C13, 2 IEC 60320 C19
————
Environment
————
product certifications: METI Denan, VDE
Standards: CSA C22.2 No 60950, IEC 60950, UL 60950-1
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 112.4 cm
Package 1 Width: 16.2 cm
Package 1 Length: 10.7 cm
Package 1 Weight: 4.91 kg
