AP8714R

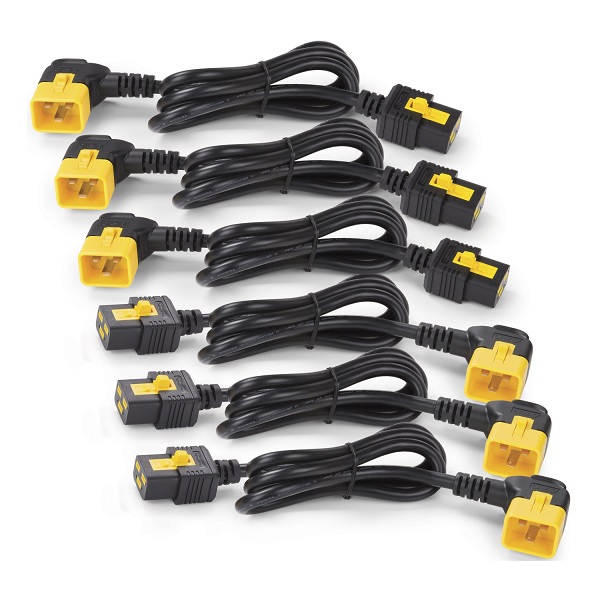

APC Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.2m



Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method While these cords will fit into any standard IEC receptacle or power inlet; the “locking” feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads



Specifications :

Overview
———
Presentation: Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the “locking” feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Power cord
Input Connection Type: IEC 60320 C20
Cable length: 1.2 m
Number of cables: 6
Provided equipment: 3 left-angle jumper cords, 3 right-angle jumper cords

———
Physical
———
Colour: Black
Height: 30 cm
Width: 6.5 cm
Depth: 7 cm
Net weight: 1.64 kg
Mounting preference: No preference
mounting mode: Not rack-mountable

——
Input
——
Max line current: 16 A
Input current limits: 16 A

——-
Output
——-
Max current draw: 16 A
Number of power socket outlets: 1 IEC 60320 C19
Power cable length: 1.2 m

————
Conformance
————
product certifications: CCC, CSA, PSE, UL listed, VDE

————–
Environmental
————–
Ambient air temperature for operation: 0…75 °C
Relative humidity: 20…80 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…75 °C
Storage Relative Humidity: 20…80 %
Storage altitude: 0.0000000000…15240.0000000000 m

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 30 cm
Package 1 Width: 6.5 cm
Package 1 Length: 7 cm
Package 1 Weight: 1.64 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 9
Package 2 Height: 143.99 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 14.733 kg
Unit Type of Package 3: CAR
Number of Units in Package 3: 9
Package 3 Height: 25 cm
Package 3 Width: 33.5 cm
Package 3 Length: 56.5 cm
Package 3 Weight: 14.733 kg
SCC14: 10731304279690
