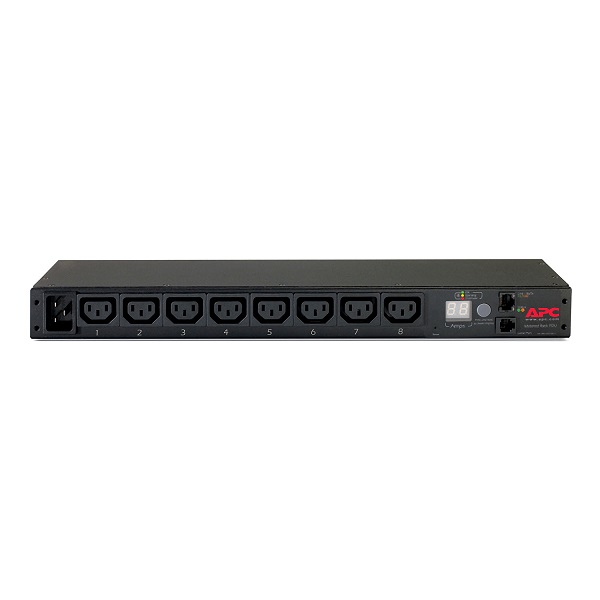

AP7821B

APC Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 16A and operates at 208-230V. The PDU features 8 IEC 60320 C13 outlets and an 8.2-foot power cord with an IEC 60320 C20 plug. It has a load capacity of 3300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Specifications :

Overview
———
Lead time: Usually in Stock
—–
Main
—–
Name: AP7821B
Product or component type: PDU
PDU type: Metered
Cord length: 2.5 m
Provided equipment: Cord retention bracket(s), Installation guide, Rack mounting brackets, User manual
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 4.4 cm
Width: 44.4 cm
Output Voltage: 208 V, 230 V
Depth: 10.2 cm
Net weight: 1.74 kg
mounting location: Front, Rear
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 1U
mounting position: Horizontal
[In] rated current: 16 A
Input current limits: 20 A
Load capacity: 3300 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 8 IEC 60320 C13
————
Environment
————
product certifications: cUL listed, C-Tick, CE, CSA, GOST, UL listed, VCCI, VDE
Standards: FCC part 15 class A, ICES-003, UL 60950
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.4 cm
Package 1 Width: 33.7 cm
Package 1 Length: 47 cm
Package 1 Weight: 2.92 kg
